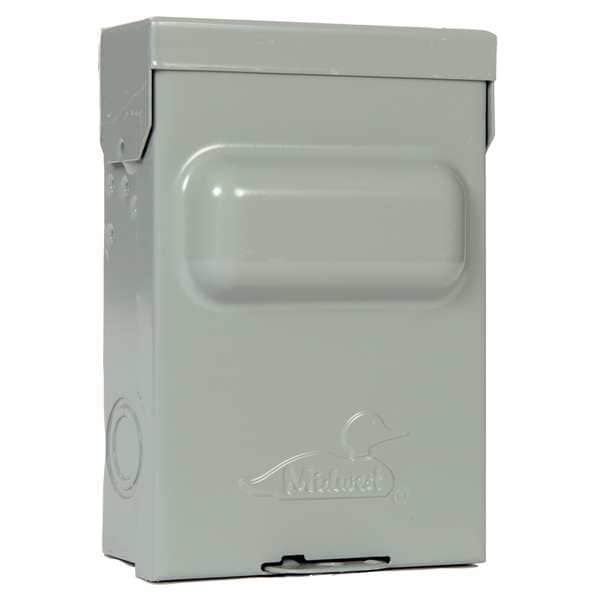

Fusible, Disconnect Switch, General Duty, 240 V, DPST, NEMA 3R

The MIDWEST - U035F2 is a Disconnect Switch, an essential industrial electrical device engineered to interrupt the flow of electric current to specific circuits or equipment. Primarily used for maintenance, repair, and emergency stoppage purposes in various sectors like manufacturing, construction, and energy production, this device is intended for use in enhancing workplace safety by helping prevent accidental startups or electrical shocks during servicing operations.

• Amps: With a 30 A rating, it is designed for handling specified electrical loads.
• Contact Form: The DPST (Double Pole Single Throw) contact form allows control over two separate circuits simultaneously.
• Duty: Rated as 'General', indicating its suitability for standard applications across various environments.
• Enclosure Type: NEMA 3R rated enclosure is intended for use in environments with certain conditions such as dust, water and external ice formation.
• Environment & For Environment: Suitable for both indoor and outdoor use based on manufacturer specifications.
• For Fuse Class: Compatible with Class H fuses catering to specific fuse requirements for optimal safety and performance.
• Fusible / Nonfusible: Fusible design provides an option for additional protection against electrical overloads through replaceable fuses
• Horsepower @ 240V AC & Max. HP @ 240V : Intended to control motors with power up to 3 horsepower at a voltage of 240 Volts AC according to manufacturer's specifications
• Housing Material & Metallic / Non-Metallic : Constructed from steel per product specifications
