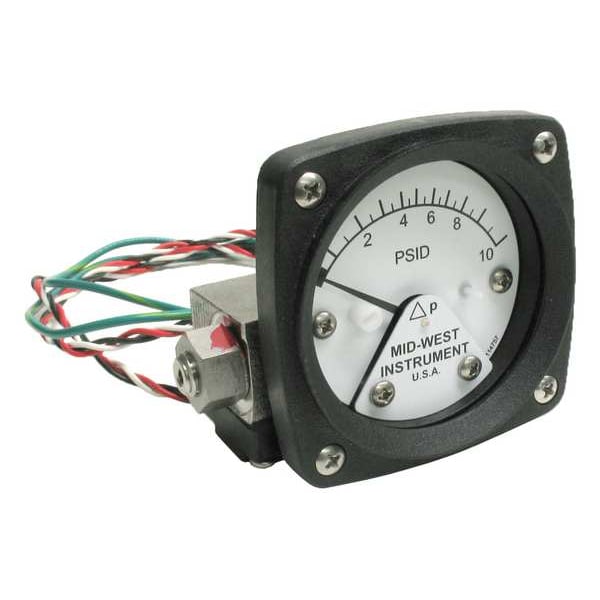

Midwest Instrument Differential Pressure Gauge and Switch 120SA-00-O-AA-10P - main

Differential Pressure Gauge and Switch

  • Mfr # 120SA-00-O-AA-10P

  • Zoro # G202016035

product price: $463.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120SA-00-O-AA-10P
Zoro #
G202016035
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
For Panel Cut-Out Size
3 in
Case Diameter
2 1/2 in
Bolt Circle Diameter
3.5 in
For Panel Cutout Diameter
3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 110 psid
Sensor Type
Piston
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Gauge Accuracy
+/-3-2-3%
Relay Type
SPDT
Seal Material
Buna-N
Case Material
Plastic
Gauge Case Material
Plastic
Socket Material
316 SS body
Includes Mounting Hardware
No
Sensor Material
Buna-N
Removable Bezel
No
Adjustable Set Points
Yes
Dial Face Material
316 Stainless Steel
Accuracy Grade
ASME B40.1 Grade B
Dial Color
White
Number of Switches
1
Includes Vent Plug
No
Switch Electrical Requirements
0.25A @ 125V AC/DC
Includes Calibration Certificate
No
IP/NEMA Rating
IP65, NEMA 4X
Panel Mount Characteristics
3 in Dia Panel Cutout and 0.19 in Holes 3 1/2 in Dia Bolt Circle
Case Construction
Hermetically Sealed
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Burst Pressure
6,000 psi
Movement Material
Stainless Steel
Compatible Process Media
Pressure Drop
Lens Material
Shatter Resistant Acrylic
Switch Contact Type
SPDT
Maximum Working Static Pressure
6,000 psi
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Hazardous Location Rating
Not Rated
Power Source
125V AC/DC
Pressure Gauge Type
Differential Pressure Gauge with Switch
Repeatability
1%
Panel-Mountable
Yes
Non-Sparking
No
Blowout Safety Back
No
Case Shape
Round
Process Temperature Range
-40 Degrees to 200 Degrees F
O-Ring Material
Buna-N
Pressure Measurement - Maximum
110 psid
IP Rating
IP65
Process Media Temperature - Minimum
-40 Degrees F
Pressure Measurement - Minimum
0 psid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4X
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
Working Static Pressure - Maximum
6,000 psi
Switch Contact Form
SPDT

Description

Differential Pressure Gauge and Switch
