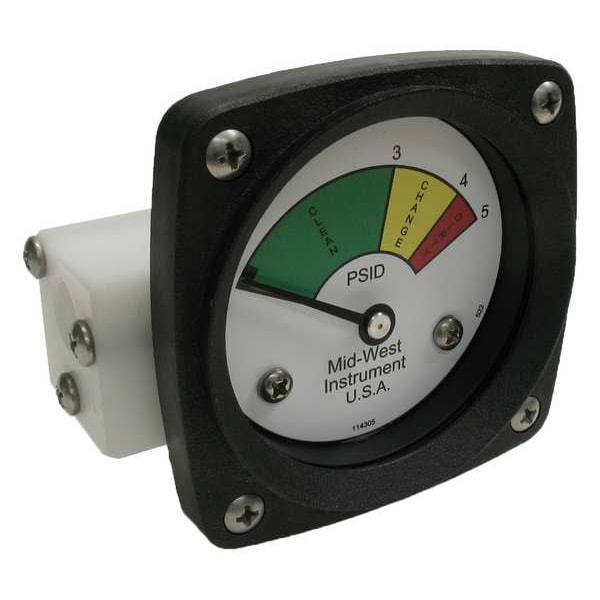

Midwest Instrument Gauge 3-Color Filter Change DP 522P-005V - main

Gauge 3-Color Filter Change DP

  • Mfr # 522P-005V

  • Zoro # G301704659

product price: $211.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-5% of Full Scale
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
522
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
522P-005V
Zoro #
G301704659
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
For Panel Cut-Out Size
2.5 in
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in

Details

Item
3-Color Differential Pressure Indicator
Accuracy
+/-5% of Full Scale
Process Connection Type
NPT
Series
522
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Water Treatment Applications
Process Connection Location
End
Housing Material
Acetal Plastic
Pressure Range
0 to 5 psid
Sensor Type
Diaphragm
Process Connection
1/4 in NPT Female
Standards
ASME B1.20.1, ASME B40.100, CSA-C22.2 No. 14, EN-61010-1, NEMA Std. 250, UL Std. No. 50 and 508
Case Material
Glass Reinforced Thermoplastic
Gauge Case Material
Glass Reinforced Thermoplastic
Rated Total Pressure
1,000 psi
Seal Material
Viton
Transition Point Range - Green
0 to 3.0 psid
Non-Sparking
No
Includes Mounting Hardware
No
Panel-Mountable
Yes
Panel Mount Characteristics
(2) #10-32 dia Hole
Case Shape
Square
Removable Bezel
No
Case Construction
Corrosion Resistant, Weather Resistant
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Accuracy Details
+/-5% of Full Scale
IP/NEMA Rating
NEMA 4X
Pressure Gauge Type
Differential Filter Indicator
Maximum Working Static Pressure
1,000 psig
Accuracy Grade
ASME B40.1 Grade D
Process Temperature Range
-40 Degrees to 200 Degrees F
Lens Material
Acrylic
Transition Point Range - Red
4.0 to 5.0 psid
Transition Point Range - Yellow
3.0 to 4.0 psid
Compatible Process Media
Gases, Water
Blowout Safety Back
No
Sensor Material
Viton
Hazardous Location Rating
Not Rated
Includes Vent Plug
No
Dial Color
Green-Yellow-Red
Adjustable Set Points
No
(hidden) switch output
522P-005V
Filter Indicator Type
Filter Indicator
Transition Points
0 to 3.0 psid (Green) / 3.0 to 4.0 psid (Yellow) / 4.0 to 5.0 psid (Red)
Process Media Temperature - Minimum
-40 Degrees F
Clean Filter Pressure Measurement - Maximum
3 psid
NEMA Enclosure Rating
4X
Process Media Temperature - Maximum
200 Degrees F
IP Rating
Not Rated
Pressure Measurement - Maximum
5 psid
Change Filter Pressure Measurement - Maximum
4 psid
Dirty Filter Pressure Measurement - Maximum
5 psid
Clean Filter Pressure Measurement - Minimum
0 psid
Dirty Filter Pressure Measurement - Minimum
4 psid
Dial Scale Color
Green-Yellow-Red
Change Filter Pressure Measurement - Minimum
3 psid
Working Static Pressure - Maximum
1,000 psig
Pressure Measurement - Minimum
0 psid

Description

3-Color Differential Pressure Indicator, Accuracy +/-5 Percent of Full Scale, Gauge Case Material Glass Reinforced Thermoplastic, Lens Material Acrylic, IP/NEMA Rating NEMA 4X, Nominal Dial Size 2 1/2 in, Panel-Mountable Yes, Pressure Gauge Type Differential Filter Indicator, Process Connection Size 1/4 in, Process Connection Type NPT, Process Connection Gender Female, Process Connection Location End, Sensor Material Viton, Pressure Range 0 to 5 psid, Maximum Working Static Pressure 1,000 psig
