Midwest Instrument

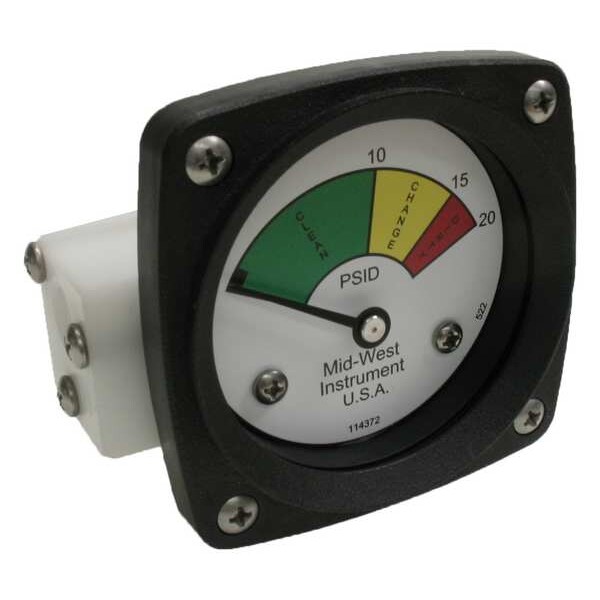

Gauge 3-Color Filter Change DP

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Series: 522
  • Item: 3-Color Differential Pressure Indicator
  • Bolt Circle Diameter: 3.5 in
  • Transition Point Range - Red: 15.0 to 20.0 psid
  • Includes Vent Plug: No
  • Compatible Process Media: Gases, Water
  • Housing Material: Acetal Plastic
  • Non-Sparking: No
See full product details
$196.84
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Midwest Instrument #522P-020 Specifications

  • Series: 522
  • Item: 3-Color Differential Pressure Indicator
  • Bolt Circle Diameter: 3.5 in
  • Transition Point Range - Red: 15.0 to 20.0 psid
  • Includes Vent Plug: No
  • Compatible Process Media: Gases, Water
  • Housing Material: Acetal Plastic
  • Non-Sparking: No
  • Adjustable Set Points: No
  • Panel-Mountable: Yes
  • Pressure Gauge Type: Differential Filter Indicator
  • Accuracy Grade: ASME B40.1 Grade D
  • Hazardous Location Rating: Not Rated
  • Case Shape: Square
  • Case Construction: Corrosion Resistant, Weather Resistant
  • Blowout Safety Back: No
  • Dial Color: Green-Yellow-Red
  • IP/NEMA Rating: NEMA 4X
  • Process Connection Location: End
  • Application: Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Water Treatment Applications
  • Process Temperature Range: -40 Degrees to 200 Degrees F
  • Maximum Working Static Pressure: 1,000 psig
  • Process Connection Type: NPT
  • Removable Bezel: No
  • Lens Material: Acrylic
  • Panel Mount Characteristics: (2) #10-32 dia Hole
  • Includes Mounting Hardware: No
  • Sensor Material: Buna-N
  • Accuracy Details: +/-5% of Full Scale
  • Manufacturer Warranty Length: 5 yr
  • Transition Point Range - Yellow: 10.0 to 15.0 psid
  • For Panel Cut-Out Size: 2.5 in
  • Includes Calibration Certificate: No
  • Process Connection Size: 1/4 in
  • Sensor Type: Diaphragm
  • Nominal Dial Size: 2 1/2 in
  • Ambient Operating Temperature Range: -40 Degrees to 200 Degrees F
  • Process Connection Gender: Female
  • Transition Point Range - Green: 0 to 10.0 psid
  • Country of Origin (subject to change): United States

Description

3-Color Differential Pressure Indicator, Accuracy +/-5.00 Percent, Gauge Case Material Glass Reinforced Thermoplastic, Lens Material Acrylic, IP/NEMA Rating NEMA 4X, Nominal Dial Size 2 1/2 in, Panel-Mountable Yes, Pressure Gauge Type Differential Filter Indicator, Process Connection Size 1/4 in, Process Connection Type NPT, Process Connection Gender Female, Process Connection Location End, Sensor Material Buna-N, Pressure Range 0 to 20 psid, Maximum Working Static Pressure 1,000 psig
