Midwest Instrument

Gauge 3-Color Filter Change DP

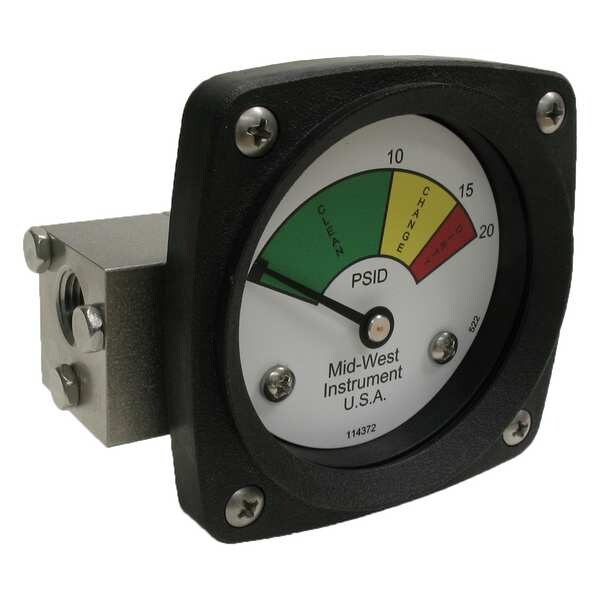

Midwest Instrument Gauge 3-Color Filter Change DP 522S-020
Hover or click to zoom Tap to zoom
$174.57
  • Series: 522
  • Item: 3-Color Differential Pressure Indicator
  • Removable Bezel: No
See full product details
This item ships free.

Total: $174.57

Midwest Instrument #522S-020 Specifications

  • Series: 522
  • Item: 3-Color Differential Pressure Indicator
  • Removable Bezel: No
  • Maximum Working Static Pressure: 1,000 psig
  • Transition Point Range - Yellow: 10.0 to 15.0 psid
  • Manufacturer Warranty Length: 5 yr
  • For Panel Cut-Out Size: 2.5 in
  • Process Connection Size: 1/4 in
  • Adjustable Set Points: No
  • Panel Mount Characteristics: (2) #10-32 dia Hole
  • Compatible Process Media: Gases, Water
  • Case Construction: Corrosion Resistant, Weather Resistant
  • Non-Sparking: No
  • Process Connection Gender: Female
  • Transition Point Range - Green: 0 to 10.0 psid
  • Process Connection Type: NPT
  • Accuracy Grade: ASME B40.1 Grade D
  • Pressure Gauge Type: Differential Filter Indicator
  • Includes Mounting Hardware: No
  • Transition Point Range - Red: 15.0 to 20.0 psid
  • Includes Vent Plug: No
  • Blowout Safety Back: No
  • Process Temperature Range: -40 Degrees to 200 Degrees F
  • Ambient Operating Temperature Range: -40 Degrees to 200 Degrees F
  • Dial Color: Green-Yellow-Red
  • Accuracy Details: +/-5% of Full Scale
  • Lens Material: Acrylic
  • IP/NEMA Rating: NEMA 4X
  • Sensor Type: Diaphragm
  • Case Shape: Square
  • Sensor Material: Buna-N
  • Hazardous Location Rating: Not Rated
  • Housing Material: Stainless Steel
  • Includes Calibration Certificate: No
  • Application: Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Water Treatment Applications
  • Panel-Mountable: Yes
  • Process Connection Location: End
  • Bolt Circle Diameter: 3.5 in
  • Nominal Dial Size: 2 1/2 in
  • Country of Origin (subject to change): United States

Description

Gauge 3-Color Filter Change DP

Restrictions and Compliance

Reviews of Midwest Instrument #522S-020
