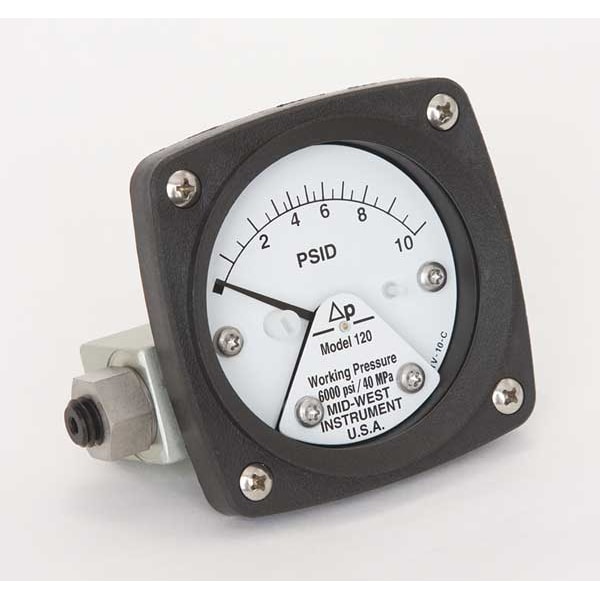

Midwest Instrument Pressure Gauge, 0 to 10 psi 120-AA-00-OO-10P - main

Pressure Gauge, 0 to 10 psi

  • Mfr # 120-AA-00-OO-10P

  • Zoro # G0017841

product price: $235.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120-AA-00-OO-10P
Zoro #
G0017841
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Differential Gauge Connection Size
1/4 in
Gauge Nominal Dial Size
2 1/2 in
Manufacturers Warranty Length
5 yr
Case Depth
0.75 in
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
Case Diameter
3 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 10 psid
Sensor Type
Piston
Standards
CSA, UL
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Rated Total Pressure
3,000 psi
Includes
Instructions
Gauge Primary Range Smallest Graduation
0.5
Scale Type
Pressure
Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Dial Material
Engineered Plastic
Seal Material
Buna-N
Differential Pressure Range
0 to 10 psi
Gauge Connection Location
Back
Differential Pressure Range Value
0 to 10
Differential Gauge Connection Type
FNPT
Body Material
Aluminum
Basic Gauge Case Material
Metal
Gauge Accuracy
+/-3-2-3%
Piston Material
Stainless Steel
Differential Pressure Range Units
psi
Socket Material
Ceramic/Stainless Steel
Case Material
Plastic
Gauge Case Material
Plastic
Removable Bezel
No
Panel-Mountable
Yes
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Movement Material
Stainless Steel
Pressure Gauge Type
Differential Pressure Gauge
Process Temperature Range
-40 Degrees to 200 Degrees F
Blowout Safety Back
No
Maximum Working Static Pressure
3,000 psig
Sensor Material
Buna-N
Lens Material
Acrylic
Primary Scale Minor Graduations
0.5
Includes Calibration Certificate
No
Includes Vent Plug
No
Repeatability
1%
Hazardous Location Rating
Not Rated
Case Construction
Glass Reinforced
Includes Mounting Hardware
No
Adjustable Set Points
Yes
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Dial Color
White
Case Shape
Round
IP/NEMA Rating
IP65, NEMA 4X
Bezel Gasket Material
Buna-N
Accuracy Grade
ASME B40.1 Grade B
Pressure Measurement - Maximum
10 psid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Pressure Measurement - Minimum
0 psid
Process Media Temperature - Minimum
-40 Degrees F
Pressure Scale Minor Graduations
0.5
IP Rating
IP65
Process Media Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4X
Number of Switches
0
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
Working Static Pressure - Maximum
3,000 psig

Description

Differential Pressure Gauge, Differential Pressure Range 0 to 10 psi, Rated Total Pressure 3000 psi, Connection Size 1/4 In. FNPT, Dial Size 2-1/2 In., Body Material Aluminum, Scale Type Pressure, Pressure Range Minor Div. 0.50 psi, Accuracy +/-3/2/3 Percent, Dial Material Engineered Plastic, Piston Material Stainless Steel, Seal Material Buna-N, Ambient Operating Range -40 Degrees to 200 Degrees F..
