  9. Pressure Gauge, 0 to 10 psi

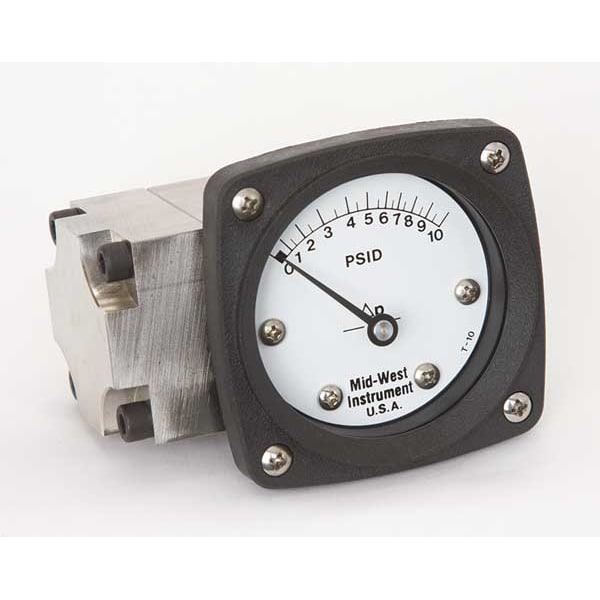

Midwest Instrument Pressure Gauge, 0 to 10 psi 142-SA-00-OO-10P - main

Pressure Gauge, 0 to 10 psi

  • Mfr # 142-SA-00-OO-10P

  • Zoro # G0018191

product price: $650.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
Model 142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-SA-00-OO-10P
Zoro #
G0018191
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Differential Gauge Connection Size
1/4 in
Gauge Nominal Dial Size
2 1/2 in
Manufacturers Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
Case Diameter
3 in
Manufacturer Warranty Length
5 yr
Case Depth
0.78 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
Model 142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 10 psid
Sensor Type
Diaphragm
Diaphragm Material
Buna-N
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Differential Pressure Range Value
0 to 10
Gauge Accuracy
+/-3-2-3%
Basic Gauge Wetted Parts
Buna-N
Gauge Primary Range Smallest Graduation
0.5
Differential Pressure Range Units
psi
Scale Type
Pressure
Differential Gauge Connection Type
FNPT
Basic Gauge Case Material
Metal
Includes
Instructions
Dial Material
Engineered Plastic
Differential Pressure Range
0 to 10 psi
Body Material
316 Stainless Steel
Gauge Connection Location
Back
Rated Total Pressure
3,000 psi
Seal Material
Buna-N
Differential Pressure Gauge Type
Differential Pressure Gauge
Case Material
Plastic
Socket Material
Ceramic/Stainless Steel
Sensor Material
Buna-N
Removable Bezel
No
Blowout Safety Back
No
Movement Type
Rotary
Lens Material
Acrylic
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Maximum Working Static Pressure
3,000 psig
Compatible Process Media
Fluid, Wet Gas
Primary Scale Minor Graduations
0.5
Dial Color
White
Includes Mounting Hardware
No
Hazardous Location Rating
Not Rated
Pressure Gauge Type
Differential Pressure Gauge
Bezel Gasket Material
Buna-N
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Repeatability
1%
Gauge Case Material
Plastic
Includes Vent Plug
No
Accuracy Grade
ASME B40.1 Grade B
IP/NEMA Rating
IP65, NEMA 4X
Adjustable Set Points
Yes
Movement Material
316 Stainless Steel
Panel-Mountable
Yes
Non-Sparking
No
Pointer Material
316 Stainless Steel
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Construction
Glass Reinforced
Case Shape
Round
Includes Calibration Certificate
No
Process Media Temperature - Maximum
200 Degrees F
Pressure Measurement - Maximum
10 psid
NEMA Enclosure Rating
4X
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Number of Switches
0
Pressure Scale Minor Graduations
0.5
Pressure Measurement - Minimum
0 psid
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.
Working Static Pressure - Maximum
3,000 psig

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 10 PSID, Pressure Range Minor Div .50 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, 316 Stainless Steel Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
