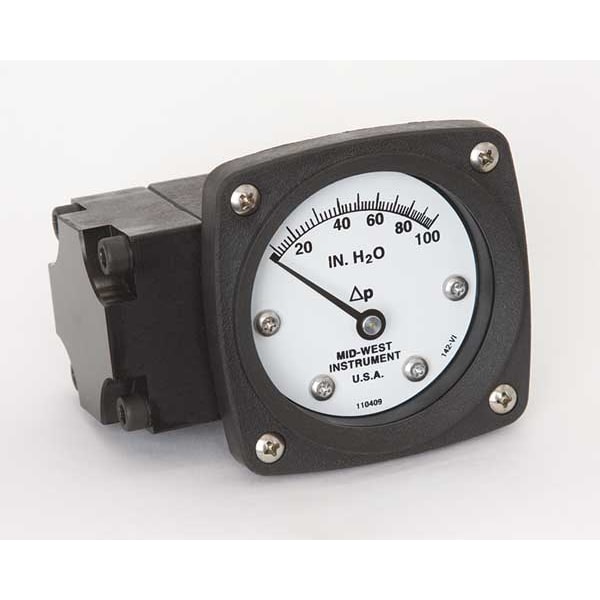

Midwest Instrument Pressure Gauge, 0 to 100 In H2O 142-AA-00-OO-100H - main

Pressure Gauge, 0 to 100 In H2O

  • Mfr # 142-AA-00-OO-100H

  • Zoro # G0018051

product price: $319.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-AA-00-OO-100H
Zoro #
G0018051
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Differential Gauge Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Gauge Nominal Dial Size
2 1/2 in
Case Diameter
3 in
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
Case Depth
0.78 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 100 in wc
Sensor Type
Diaphragm
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Differential Pressure Range Value
0 to 100
Includes
Instructions
Diaphragm Material
Buna-N
Rated Total Pressure
3,000 psi
Differential Pressure Gauge Type
Differential Pressure Gauge
Basic Gauge Wetted Parts
Buna-N
Basic Gauge Case Material
Metal
Differential Gauge Connection Type
FNPT
Gauge Accuracy
+/-3-2-3%
Scale Type
Pressure
Gauge Primary Range Smallest Graduation
2
Body Material
Aluminum
Seal Material
Buna-N
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Dial Material
Engineered Plastic
Differential Pressure Range
0 to 100 in wc
Gauge Connection Location
Back
Differential Pressure Range Units
in wc
Case Material
Plastic
Socket Material
Ceramic/Stainless Steel
Panel-Mountable
Yes
Gauge Case Material
Plastic
Lens Material
Acrylic
Movement Type
Rotary
Includes Calibration Certificate
No
Repeatability
1%
Blowout Safety Back
No
Primary Scale Minor Graduations
2
Hazardous Location Rating
Not Rated
Includes Vent Plug
No
Removable Bezel
No
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Shape
Round
Sensor Material
Buna-N
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Adjustable Set Points
Yes
Case Construction
Glass Reinforced
Accuracy Grade
ASME B40.1 Grade B
Includes Mounting Hardware
No
IP/NEMA Rating
IP65, NEMA 4X
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Non-Sparking
No
Pressure Gauge Type
Differential Pressure Gauge
Dial Color
White
Compatible Process Media
Fluid, Wet Gas
Bezel Gasket Material
Buna-N
Maximum Working Static Pressure
3,000 psig
Movement Material
316 Stainless Steel
Process Media Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4X
Pressure Measurement - Minimum
0 in wc
Number of Switches
0
Pressure Scale Minor Graduations
2
Pressure Measurement - Maximum
100 in wc
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Operating Temperature - Minimum
-40 Degrees F
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 100 In WC, Pressure Range Minor Div 2.0 In WC, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, Aluminum Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
