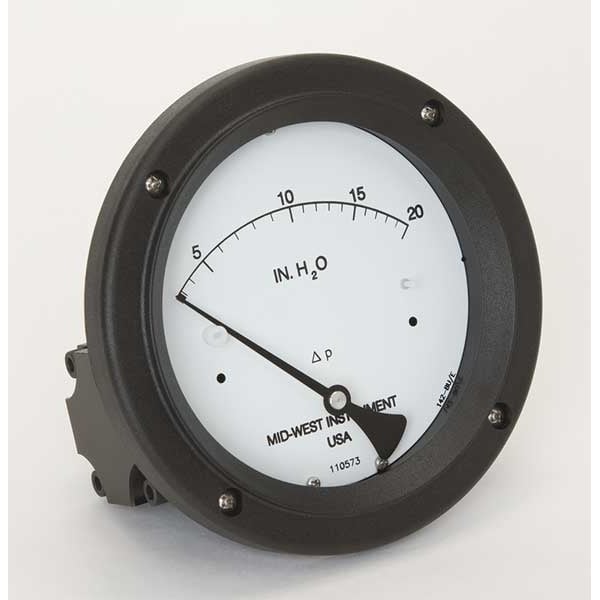

Midwest Instrument Pressure Gauge, 0 to 20 In H2O 142-SC-00-OO-20H - main

Pressure Gauge, 0 to 20 In H2O

  • Mfr # 142-SC-00-OO-20H

  • Zoro # G0018347

product price: $677.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
Model 142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-SC-00-OO-20H
Zoro #
G0018347
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
Differential Gauge Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Gauge Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.18 in
Bolt Circle Diameter
5.63 in
Case Diameter
6 1/4 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
Model 142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 20 in wc
Sensor Type
Diaphragm
Differential Pressure Range
0 to 20 in wc
Scale Type
Pressure
Dial Material
Engineered Plastic
Seal Material
Buna-N
Gauge Accuracy
+/-3-2-3%
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Basic Gauge Case Material
Metal
Diaphragm Material
Buna-N
Differential Pressure Gauge Type
Differential Pressure Gauge
Differential Gauge Connection Type
FNPT
Gauge Primary Range Smallest Graduation
1
Differential Pressure Range Value
0 to 20
Includes
Instructions
Gauge Connection Location
Back
Differential Pressure Range Units
in wc
Basic Gauge Wetted Parts
Buna-N
Rated Total Pressure
3,000 psi
Body Material
316 Stainless Steel
Socket Material
Ceramic/Stainless Steel
Case Material
Plastic
Includes Calibration Certificate
No
Blowout Safety Back
No
Panel-Mountable
Yes
Repeatability
1%
Case Construction
Glass Reinforced
IP/NEMA Rating
IP65, NEMA 4X
Primary Scale Minor Graduations
1
Lens Material
Acrylic
Compatible Process Media
Fluid, Wet Gas
Case Shape
Round
Sensor Material
Buna-N
Non-Sparking
No
Adjustable Set Points
Yes
Maximum Working Static Pressure
3,000 psig
Pressure Gauge Type
Differential Pressure Gauge
Hazardous Location Rating
Not Rated
Removable Bezel
No
Includes Mounting Hardware
No
Includes Vent Plug
No
Accuracy Grade
ASME B40.1 Grade B
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Movement Material
316 Stainless Steel
Dial Color
White
Process Temperature Range
-40 Degrees to 200 Degrees F
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Movement Type
Rotary
Bezel Gasket Material
Buna-N
Gauge Case Material
Plastic
Pressure Scale Minor Graduations
1
NEMA Enclosure Rating
4X
Pressure Measurement - Minimum
0 in wc
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Operating Temperature - Maximum
200 Degrees F
Number of Switches
0
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Pressure Measurement - Maximum
20 in wc
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 20 In WC, Pressure Range Minor Div 1.0 In WC, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 4-1/2 In In, 316 Stainless Steel Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
