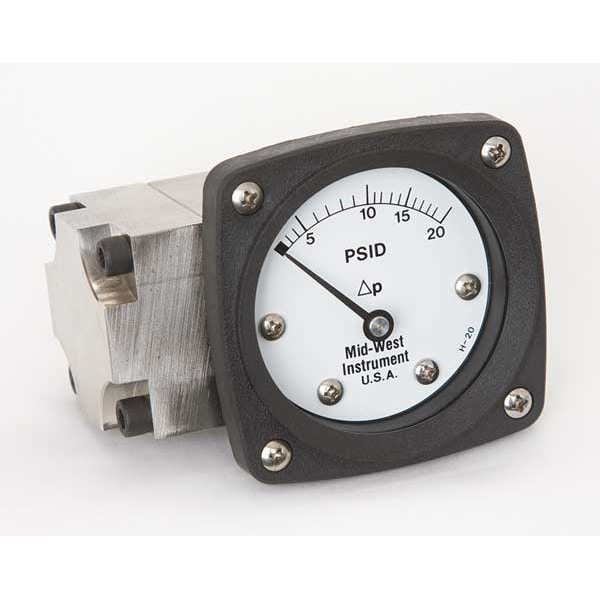

Midwest Instrument Pressure Gauge, 0 to 20 psi 142-SA-00-OO-20P - main

Pressure Gauge, 0 to 20 psi

  • Mfr # 142-SA-00-OO-20P

  • Zoro # G0018216

product price: $644.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
Model 142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-SA-00-OO-20P
Zoro #
G0018216
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Gauge Nominal Dial Size
2 1/2 in
Manufacturers Warranty Length
5 yr
Differential Gauge Connection Size
1/4 in
Manufacturer Warranty Length
5 yr
Case Diameter
6 1/4 in
Bolt Circle Diameter
3.5 in
Case Depth
0.78 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
Model 142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 20 psid
Sensor Type
Diaphragm
Scale Type
Pressure
Differential Pressure Gauge Type
Differential Pressure Gauge
Diaphragm Material
Buna-N
Rated Total Pressure
3,000 psi
Dial Material
Engineered Plastic
Seal Material
Buna-N
Basic Gauge Wetted Parts
Buna-N
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Basic Gauge Case Material
Metal
Differential Pressure Range Value
0 to 20
Gauge Accuracy
+/-3-2-3%
Includes
Instructions
Gauge Connection Location
Back
Differential Pressure Range
0 to 20 psi
Gauge Primary Range Smallest Graduation
1
Differential Gauge Connection Type
FNPT
Differential Pressure Range Units
psi
Body Material
316 Stainless Steel
Socket Material
Ceramic/Stainless Steel
Case Material
Plastic
Case Shape
Round
Lens Material
Acrylic
Includes Mounting Hardware
No
Accuracy Grade
ASME B40.1 Grade B
Panel-Mountable
Yes
Dial Color
White
Pointer Material
316 Stainless Steel
Movement Material
316 Stainless Steel
Process Temperature Range
-40 Degrees to 200 Degrees F
Includes Vent Plug
No
Case Construction
Glass Reinforced
Maximum Working Static Pressure
3,000 psig
Gauge Case Material
Plastic
Adjustable Set Points
Yes
Sensor Material
Buna-N
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Bezel Gasket Material
Buna-N
Pressure Gauge Type
Differential Pressure Gauge
Hazardous Location Rating
Not Rated
Removable Bezel
No
Repeatability
1%
Includes Calibration Certificate
No
Blowout Safety Back
No
Primary Scale Minor Graduations
1
Movement Type
Rotary
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Non-Sparking
No
IP/NEMA Rating
IP65, NEMA 4X
Compatible Process Media
Fluid, Wet Gas
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Pressure Measurement - Maximum
20 psid
Operating Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4X
Process Media Temperature - Maximum
200 Degrees F
Pressure Scale Minor Graduations
1
IP Rating
IP65
Number of Switches
0
Pressure Measurement - Minimum
0 psid
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 20 PSID, Pressure Range Minor Div 1.0 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, 316 Stainless Steel Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
