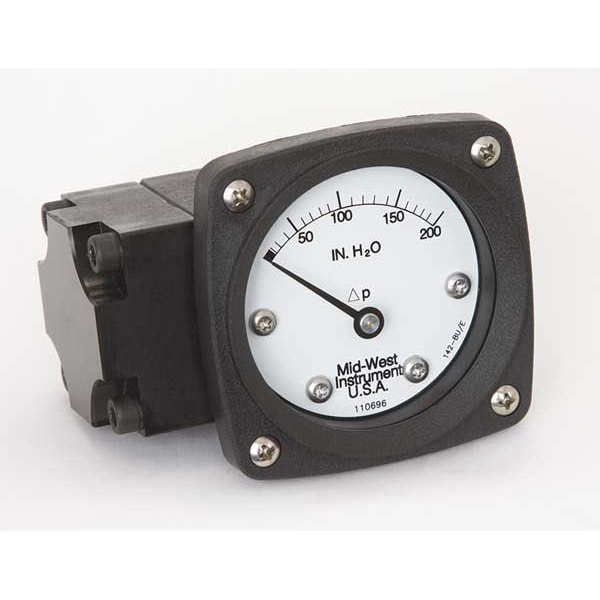

Midwest Instrument Pressure Gauge, 0 to 200 In H2O 142-AA-00-OO-200H - main

Pressure Gauge, 0 to 200 In H2O

  • Mfr # 142-AA-00-OO-200H

  • Zoro # G0018067

product price: $328.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-AA-00-OO-200H
Zoro #
G0018067
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Gauge Nominal Dial Size
2 1/2 in
Differential Gauge Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
Case Diameter
3 in
Case Depth
0.78 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 200 in wc
Sensor Type
Diaphragm
Gauge Connection Location
Back
Includes
Instructions
Rated Total Pressure
3,000 psi
Scale Type
Pressure
Differential Pressure Range
0 to 200 in wc
Differential Gauge Connection Type
FNPT
Dial Material
Engineered Plastic
Differential Pressure Range Value
0 to 200
Body Material
Aluminum
Basic Gauge Wetted Parts
Buna-N
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Primary Range Smallest Graduation
10
Basic Gauge Case Material
Metal
Differential Pressure Range Units
in wc
Diaphragm Material
Buna-N
Gauge Accuracy
+/-3-2-3%
Seal Material
Buna-N
Socket Material
Ceramic/Stainless Steel
Case Material
Plastic
Sensor Material
Buna-N
Case Shape
Round
Primary Scale Minor Graduations
10
Movement Type
Rotary
Pressure Gauge Type
Differential Pressure Gauge
Includes Vent Plug
No
Panel-Mountable
Yes
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Repeatability
1%
Process Temperature Range
-40 Degrees to 200 Degrees F
IP/NEMA Rating
IP65, NEMA 4X
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Accuracy Grade
ASME B40.1 Grade B
Compatible Process Media
Fluid, Wet Gas
Movement Material
316 Stainless Steel
Lens Material
Acrylic
Gauge Case Material
Plastic
Maximum Working Static Pressure
3,000 psig
Case Construction
Glass Reinforced
Adjustable Set Points
Yes
Removable Bezel
No
Dial Color
White
Blowout Safety Back
No
Non-Sparking
No
Hazardous Location Rating
Not Rated
Bezel Gasket Material
Buna-N
Process Media Temperature - Maximum
200 Degrees F
Pressure Scale Minor Graduations
10
Operating Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4X
IP Rating
IP65
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Number of Switches
0
Pressure Measurement - Maximum
200 in wc
Pressure Measurement - Minimum
0 in wc
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 200 In WC, Pressure Range Minor Div 10.0 WC, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, Aluminum Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
