Midwest Instrument

Pressure Gauge, 0 to 5 psi

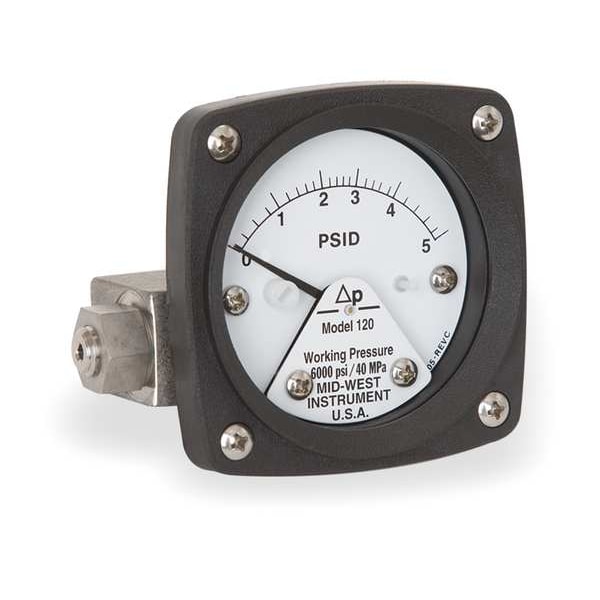

Midwest Instrument Pressure Gauge, 0 to 5 psi 120-AA-00-OO-5P
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$175.49
  • Differential Pressure Gauge Type: Differential Pressure Gauge
  • Gauge Nominal Dial Size: 2 1/2 in
  • Basic Gauge Case Material: Metal
See full product details
This item ships free.
Total: $175.49

Midwest Instrument #120-AA-00-OO-5P Specifications

  • Differential Pressure Gauge Type: Differential Pressure Gauge
  • Gauge Nominal Dial Size: 2 1/2 in
  • Basic Gauge Case Material: Metal
  • Basic Gauge Wetted Parts: Stainless Steel / Buna-N
  • Differential Gauge Connection Type: FNPT
  • Differential Gauge Connection Size: 1/4 in
  • Gauge Connection Location: Back
  • Differential Pressure Range Units: psi
  • Differential Pressure Range Value: 0 to 5
  • Gauge Accuracy: +/-3-2-3%
  • Gauge Operating Temp. Range: -40 Degrees to 200 Degrees F
  • Piston Material: Stainless Steel
  • Seal Material: Buna-n
  • Includes: Instructions
  • Body Material: Aluminum
  • Scale Type: Pressure
  • Rated Total Pressure: 3000 PSI
  • Dial Material: Engineered Plastic
  • Differential Pressure Range: 0 to 5 psi
  • Gauge Primary Range Smallest Graduation: 0.2
  • Standards: ASME B1.20.1, ASME B40.100, CSA-C22.2 No. 14.25 and 30, EN-61010-1, NACE MR0175, NEMA Std. No. 250, SAE J514, UL Std. No. 50,508 and 1203
  • Item: Differential Pressure Gauge
  • Manufacturers Warranty Length: 5 yr
  • Series: Series 120
  • Pressure Range: 0 to 5 psid
  • Housing Material: Aluminum
  • Panel-Mountable: Yes
  • Accuracy Grade: ASME B40.1 Grade B
  • Brand and Series: MIDWEST INSTRUMENT 120
  • Case Diameter: 3 in
  • Process Connection Size: 1/4 in
  • Movement Material: Stainless Steel
  • Application: Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
  • Process Temperature Range: -40 Degrees to 200 Degrees F
  • Max Pressure Application: For High Operating Pressure
  • Blowout Safety Back: No
  • Connection Location: Back
  • Case Construction: Glass Reinforced
  • Accuracy: +/-3-2-3%
  • Gauge Case Material: Plastic
  • Case Shape: Round
  • Application - Max Pressure: For High Operating Pressure
  • Pressure Gauge Type: Differential Pressure Gauge
  • (Hidden) Series x Accuracy: +/-3-2-3% x 120
  • Bezel Gasket Material: Buna-N
  • Process Connection Location: Back
  • Lens Material: Acrylic
  • Dial Color: White
  • Repeatability: 1%
  • Primary Scale Minor Graduations: 0.2
  • Process Connection: 1/4 in NPT Female
  • Process Connection Type: NPT
  • IP/NEMA Rating: IP65, NEMA 4X
  • Nominal Dial Size: 2 1/2 in
  • Includes Vent Plug: No
  • Includes Mounting Hardware: No
  • Maximum Working Static Pressure: 3,000 psig
  • Non-Sparking: No
  • (Hidden) max pressure differentiator: 3,000 psig x For High Operating Pressure
  • Adjustable Set Points: Yes
  • Case Depth: 0.75 in
  • Process Connection Gender: Female
  • Removable Bezel: No
  • Ambient Operating Temperature Range: -40 Degrees to 200 Degrees F
  • Sensor Material: Buna-N
  • Panel Mount Characteristics: 3 L Dia Holes on E Dia Bolt Circle
  • Includes Calibration Certificate: No
  • Manufacturer Warranty Length: 5 yr
  • Hazardous Location Rating: Not Rated
  • Bolt Circle Diameter: 3.5 in
  • Sensor Type: Piston
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Differential Pressure Gauge, Gauge Nominal Dial Size 2 1/2 in, Basic Gauge Case Material Metal, Basic Gauge Wetted Parts Stainless Steel / Buna-N, Differential Gauge Connection Type FNPT, Differential Gauge Connection Size 1/4 in, Gauge Connection Location Back, Differential Pressure Range Units psi, Differential Pressure Range Value 0 to 5, Gauge Accuracy +/-3-2-3 Percent, Body Material Aluminum, Gauge Primary Range Smallest Graduation 0.2, Piston Material Stainless Steel, Seal Material Buna-N
