  9. Pressure Gauge, 0 to 50 psi

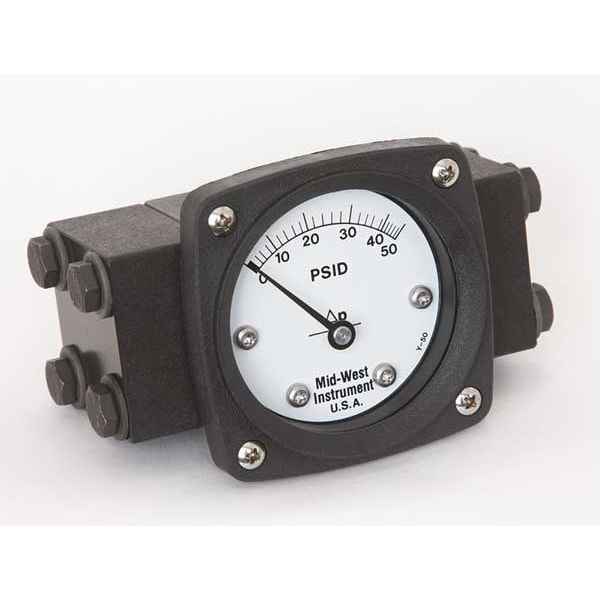

Midwest Instrument Pressure Gauge, 0 to 50 psi 140-AA-00-OO-50P - main

Pressure Gauge, 0 to 50 psi

  • Mfr # 140-AA-00-OO-50P

  • Zoro # G0017631

product price: $343.79
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
140
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
140-AA-00-OO-50P
Zoro #
G0017631
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Gauge Nominal Dial Size
2 1/2 in
Manufacturers Warranty Length
5 yr
Differential Gauge Connection Size
1/4 in
Manufacturer Warranty Length
5 yr
Case Diameter
3 5/16 in
Bolt Circle Diameter
3.5 in
Case Depth
0.78 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
140
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 50 psid
Sensor Type
Diaphragm
Gauge Accuracy
+/-3-2-3%
Diaphragm Material
Buna-N
Basic Gauge Case Material
Metal
Body Material
Aluminum
Seal Material
Buna-N
Differential Pressure Range Units
psi
Scale Type
Pressure
Differential Gauge Connection Type
FNPT
Includes
Instructions
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Differential Pressure Range Value
0 to 50
Differential Pressure Gauge Type
Differential Pressure Gauge
Differential Pressure Range
0 to 50 psi
Gauge Primary Range Smallest Graduation
2
Dial Material
Engineered Plastic
Gauge Connection Location
Back
Basic Gauge Wetted Parts
Buna-N
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Rated Total Pressure
3,000 psi
Socket Material
Ceramic/Stainless Steel
Case Material
316 Stainless Steel, Aluminum
Includes Calibration Certificate
No
Dial Color
White
Primary Scale Minor Graduations
2
Gauge Case Material
316 Stainless Steel, Aluminum
Case Construction
Glass Reinforced
Includes Vent Plug
No
Repeatability
1%
Removable Bezel
No
Pressure Gauge Type
Differential Pressure Gauge
Maximum Working Static Pressure
3,000 psig
Blowout Safety Back
No
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Movement Type
Rotary
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Process Temperature Range
-40 Degrees to 200 Degrees F
Non-Sparking
No
Case Shape
Round
Sensor Material
Buna-N
Accuracy Grade
ASME B40.1 Grade B
Includes Mounting Hardware
No
Adjustable Set Points
Yes
IP/NEMA Rating
IP65, NEMA 4X
Movement Material
316 Stainless Steel
Bezel Gasket Material
Buna-N
Number of Switches
0
Operating Temperature - Maximum
200 Degrees F
IP Rating
IP65
Pressure Measurement - Minimum
0 psid
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Pressure Measurement - Maximum
50 psid
Pressure Scale Minor Graduations
2
NEMA Enclosure Rating
4X
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 50 PSID, Pressure Range Minor Div 2.0 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, Aluminum Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
