  5. Pressure Gauge, 0 to 35 In. H2O, 1/4" Hose Barb, Steel, Black

This item is Discontinued.

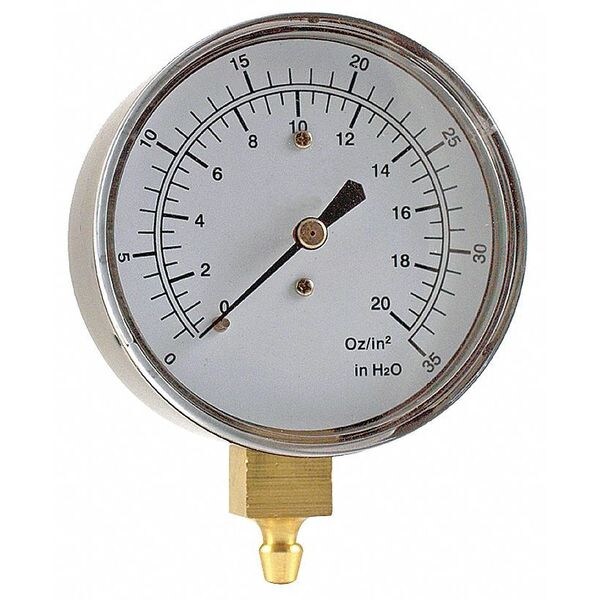

Miljoco Pressure Gauge, 0 to 35 In. H2O, 1/4" Hose Barb, Steel, Black LP2507L232HB

Pressure Gauge, 0 to 35 In. H2O, 1/4" Hose Barb, Steel, Black (Discontinued)

  • Mfr # LP2507L232HB
  • Zoro # G3313502
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP2507L232HB
Zoro #
G3313502
UPC #
-
Country of Origin
China

Dimensions

Connection Size
1/4" Hose Barb
Gauge Connection Size
1/4"
Gauge Nominal Dial Size
2-1/2"

Details

Connection Location
Lower
Item
Pressure Gauge
Gauge Application
Low Pressure
Range
0 to 35" H2O, 0 to 20 oz./sq. in.
Accuracy
+/-1.5%
Gauge Primary Range Values
0 to 35
Gauge Primary Range Units
In. H2O
Gauge Connection Type
Hose Barb
Basic Gauge Case Material
Steel
Case Color
Black
Liquid Filled
No
Gauge Secondary Range Units
oz./sq. In.
Calibration Certificate Included
No
Gauge Accuracy
+/-1.50%
Gauge Connection Location
Bottom
Smallest Graduation
5" H2O/1 oz./sq. in.
Series
LP2507
Gauge Lens Material
Polycarbonate
Gauge Case Color
Black
Basic Gauge Lens Material
Plastic
Gauge Secondary Range Values
0 to 20
Graduations
4" H2O/0.5 oz./sq. in.
Pressure and Vacuum Gauge Type
Pressure Gauge
Basic Gauge Sensor Material
Copper
Gauge Socket Material
Brass
Gauge Primary Range Smallest Graduation
5
Gauge Sensor Material
Beryllium Copper
Basic Gauge Socket Material
Brass
Operating Temp. Range
-40 Degrees to 150 Degrees F
Gauge Special Options
Diaphragm
Basic Gauge Wetted Parts
Brass / Copper
Gauge Case Material
Steel
Socket Material
Brass
Lens Material
Polycarbonate

Description

Pressure Gauge, Low Pressure, 2-1/2 In., Basic Gauge Case Material Steel, Basic Gauge Wetted Parts Brass / Copper, 1/4 In., Hose Barb, Gauge Connection Location Bottom, 0 to 35, In. H2O, Gauge Secondary Range Units oz./sq. In., Gauge Secondary Range Values 0 to 20, +/-1.50 Percent, Liquid Filled No, Gauge Primary Range Smallest Graduation 5, Gauge Case Material Steel, Gauge Case Color Black, Calibration Certificate Included No
