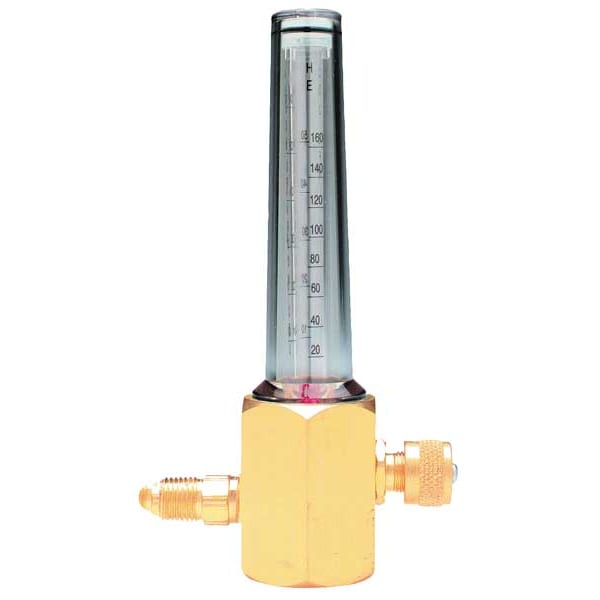

Miller Electric Flowmeter, Argon, Carbon Dioxide, Helium, Single Stage, 5/8"-18 Inlet, 5/8"-18 Outlet, 50 psi H2231A - main

Flowmeter, Argon, Carbon Dioxide, Helium, Single Stage, 5/8"-18 Inlet, 5/8"-18 Outlet, 50 psi

  • Mfr # H2231A

  • Zoro # G3428424

product price: $112.30
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Argon, Carbon Dioxide, Helium
Outlet Connection Size
5/8"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
50 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H2231A
Zoro #
G3428424
UPC #
014495263680
Country of Origin
United States

Dimensions

Outlet Connection Size
5/8"-18
Inlet Connection Size
5/8"-18
Overall Length
1-7/8"
Hose Fitting Size
B (Inert)
Dedupe with CGA Number and Inlet Connection Size
5/8"-18 RH

Details

Item
Flowmeter
Compatible Gas Type
Argon, Carbon Dioxide, Helium
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
50 psig
Regulator Supply Type
Cylinder
Includes
Self-Centering Ball, Shatter Resistant Polycarbonate Resin Tube
Delivery
50 psi
Stages
Single Stage
Regulator Application
General Purpose
Application
MIG Welding (GMAW), TIG Welding (GTAW)
Delivery Pressure Range
50 psi
Maximum Gauge Inlet Pressure
50 psig
Product Type
Flowmeter
Helium Flow Rate (Maximum)
160 scfh
Inlet Connection Gender
Male
Inlet Thread Direction
Right Hand
Inlet Connection Type
UNF
Carbon Dioxide Flow Rate (Minimum)
1 scfh
Carbon Dioxide Flow Rate (Maximum)
50 scfh
Argon Flow Rate (Minimum)
1 scfh
CGA Number
CGA 180
Outlet Connection Type
UNF
Outlet Connection Gender
Female
Included Hose
Self-Centering Ball, Shatter Resistant Polycarbonate Resin Tube
Argon Flow Rate (Maximum)
60 scfh
Outlet Thread Direction
Right Hand
Helium Flow Rate (Minimum)
1 scfh
Inlet Pressure (Maximum)
50 psig
Regulator Series
H2230

Description

Flowmeter, Compatible Gas Type Argon, Carbon Dioxide, Helium, Mounting Type Pipeline, Regulator, Inlet Connection Gender Male, Inlet Thread Direction Right Hand, Inlet Connection Size 5/8 In.-18, Inlet Connection Type UNF, Maximum Inlet Pressure 50 psig, Outlet Pressure (Maximum) 50 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 60 scfh, Carbon Dioxide Flow Rate (Maximum) 50 scfh, Helium Flow Rate (Maximum) 160 scfh
