Miller Electric Flowmeter Regulator and Hose Kit, Argon, Carbon Dioxide, Helium, Single Stage, 0.965"-14 Inlet 22-80-580-6 - main

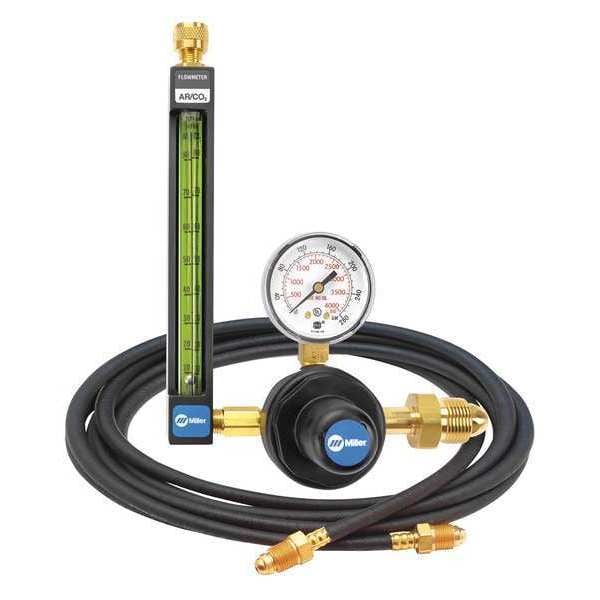

Flowmeter Regulator and Hose Kit, Argon, Carbon Dioxide, Helium, Single Stage, 0.965"-14 Inlet

  • Mfr # 22-80-580-6

  • Zoro # G4323028

product price: $285.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Argon, Carbon Dioxide, Helium
Outlet Connection Size
5/8"-18
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
80 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22-80-580-6
Zoro #
G4323028
UPC #
014495278677
Country of Origin
United States

Dimensions

Outlet Connection Size
5/8"-18
Gauge Diameter
2 in
Inlet Connection Size
0.965"-14
Overall Length
3-1/2"
Body Diameter
2 in
Dedupe with CGA Number and Inlet Connection Size
CGA 580

Details

Item
Flowmeter Regulator and Hose Kit
Compatible Gas Type
Argon, Carbon Dioxide, Helium
Body Material
Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
80 psig
Outlet Pressure (Minimum)
0 psig
Regulator Supply Type
Cylinder
Regulator Capacity
Medium Duty
Includes
6 ft Hose with 1/4 in Inlet Hose Connection, Filtered Seat, Flowball
Delivery
10 to 80 scfh
Standards
UL Listed
Diaphragm Material
Neoprene
Supply Pressure Gauge
0 to 4000 psi
Delivery Pressure Range
0 to 80 psi
Stages
Single Stage
Application
Oxy-Fuel Cutting, Welding and Heating
Regulator Application
General Purpose
Duty Rating
Heavy Duty
Features
Shatter-Resistant Multi-Scale Flow Tube, Sure-Seat Filtered High-Pressure Seat Assembly, Self-Centering Ball Buide
Outlet Connection Gender
Female
Product Type
Flowmeter Regulator & Hose Kit
Argon Flow Rate (Maximum)
80 scfh
Inlet Connection Type
NGO
CGA Number
CGA 580
Carbon Dioxide Flow Rate (Maximum)
80 scfh
Inlet Thread Direction
Right Hand
Outlet Thread Direction
Right Hand
Included Hose
6 ft
Outlet Connection Type
UNF
Inlet Connection Gender
Female
Inlet Pressure (Maximum)
3,000 psig
Regulator Series
30

Description

Flowmeter Regulator, Compatible Gas Type Argon, Carbon Dioxide, Helium, Mounting Type Cylinder, Inlet Connection Gender Female, Inlet Thread Direction Right Hand, Inlet Connection Size 0.965 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 3,000 psig, Outlet Pressure (Maximum) 80 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 80 scfh, Carbon Dioxide Flow Rate (Maximum) 80 scfh, Number of Stages Single Stage
