This item is Discontinued.

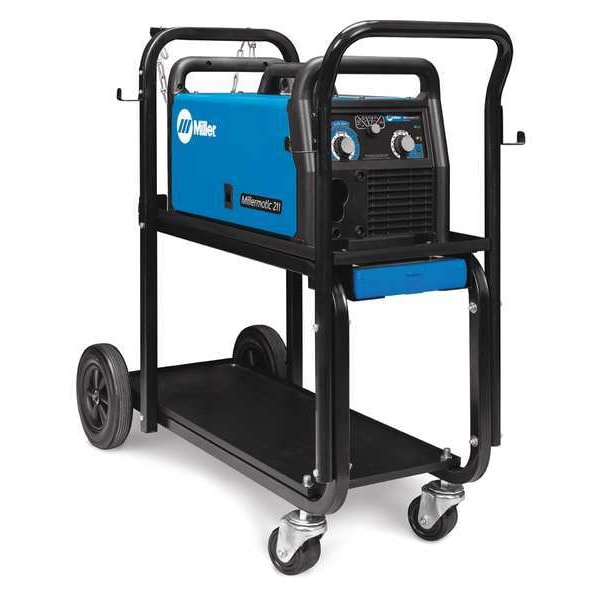

Miller Electric MIG Welder, Millermatic 211, Single-Phase, 110/115/120V AC, 220/230/240V AC, 30 to 230A DC, 40 % 951603

This item is Discontinued.

Miller Electric

MIG Welder, Millermatic 211, Single-Phase, 110/115/120V AC, 220/230/240V AC, 30 to 230A DC, 40 % (Discontinued)

Mfr # 951603
Zoro # G0464908
UPC # 715959630108
Country of Origin United States
Category MIG Welders
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
951603
Zoro #
G0464908
UPC #
715959630108
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
24 ga to 3/8 in
Wire Size
0.023 in to 0.035 in, Flux 0.030 in to 0.045 in
Stainless Steel - Material Thickness
20 ga to 1/4 in
Aluminum - Material Thickness
18 ga to 3/8 in
Overall Depth
20.5 in
Overall Width
11.25 in
Overall Height
12.5 in
Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
For Maximum Material Thickness
3/8 in (Mild Steel)
For Minimum Material Thickness
24 ga (Mild Steel)
Minimum Wire Diameter
0.024 in (Solid Steel), 0.024 in (Stainless Steel), 0.03 in (Flux-Cored), 0.6 mm (Solid Steel), 0.6 mm (Stainless Steel), 0.8 mm (Flux-Cored)
Power Cord Length
6 1/2 ft
Wire Diameter Flux-Cored - Maximum
0.045 in
Wire Diameter Solid - Minimum
0.024 in
For Steel Thickness - Minimum
24 ga
For Steel Thickness - Maximum
3/8 in
Wire Diameter Flux-Cored - Minimum
0.03 in
Wire Diameter Solid - Maximum
0.035 in

Details

Item
MIG Welder
Series
Millermatic 211
Input Voltage
110/115/120/220/230/240V AC
Welded Material
Aluminum, Steel
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Hz
60
Portability
Wheeled Mounted
Application
Customizing, DIY, Farm and Ranch, Home Hobbyist, Metal Art, Racing, Restoring, Sculptures
Duty Cycle
40 %
Rated Output
150A @ 21V DC
Standards
CSA Certified
Output Range
30 to 230A DC
Includes
10 ft. 100 MIG Welding Gun, 10 ft. Work Cable with Clamp, Argon and Ar/Co2 Mix Flow Gauge Regulator with Gas Hose, Hobart Spool of 0.030 in. Solid Wire, Quick Select Drive Rolls, Small Running Gear/Cylinder Rack, Two Contact Tips
Input Amps
17
Features
Advanced Auto-SetTM, Auto Spoolgun Detect, Smooth-StartTM, Angled Cast-Aluminum Drive System, Quick SelectTM Drive Roll, Thermal Overload Protection, Fan-on-Demand
Weight
38 lb
Welding Mode
CV
Power Cord Included
Yes
Plug Type
5-15P, 6-50P
Input Frequency
50/60 Hz
For Wire Type
Flux-Cored, Solid
Polarity
DC
Minimum Wire Feed Speed
60 in/min
MIG Welding Output @ Duty Cycle
115 A @ 19.8 V, 20%, 150 A @ 21.5 V, 40%
Amperage Range
30 to 230 A
MIG Welding Minimum Output Current
30 A
Maximum Wire Feed Speed
600 in/min
For Material Type
Steel, Stainless Steel
MIG Welding Maximum Output Current
230 A
Model
951603
Amperage MIG - Maximum
230 A
Welding Power Source Type
CV
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Amperage MIG - Minimum
30 A
Rated Output @ Duty Cycle (MIG)
115 A @ 19.8 V, 20%, 150 A @ 21.5 V, 40%

Description

MIG Welder, Series Millermatic 211, Input Voltage 110/115/120/220/230/240V AC, Phase Single, Welding Mode CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux-Cored), Maximum Wire Feed Speed 600 in/min, Model 951603, MIG Welding Output @ Duty Cycle 115 A @ 19.8 V, 20 Percent, 150 A @ 21.5 V, 40 Percent
