  9. Millermatic 252 MIG Welder (907322)

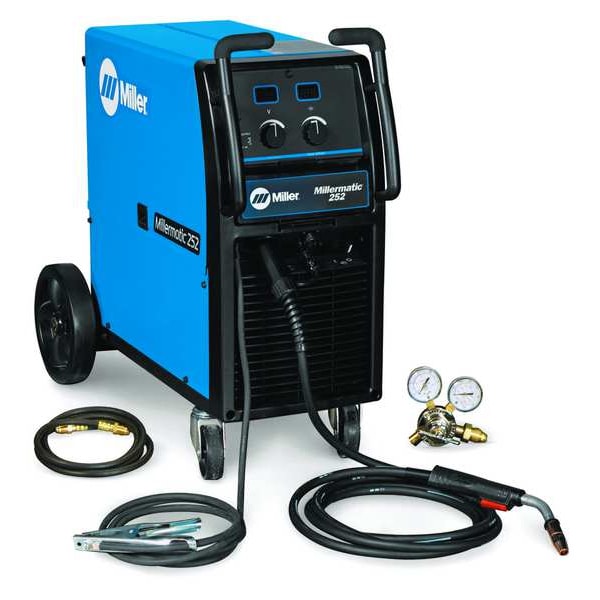

Miller Electric Millermatic 252 MIG Welder (907322) 907322 - main

Millermatic 252 MIG Welder (907322)

  • Mfr # 907322

  • Zoro # G2817613

product price: $6,290.99
/ea
Item requires special delivery charges. A $120.00 per item surcharge will be applied.

Key Features

Series
Millermatic 252
Input Voltage
220/230/240V AC, 460/480V AC, 575V AC
Welded Material
Mild Steel, Aluminum
Mild Steel - Material Thickness
22 ga to 1/2 in
Phase
Single-Phase
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907322
Zoro #
G2817613
UPC #
715959356411
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
22 ga to 1/2 in
Overall Height
30 in
Wire Size
0.023 in to 0.035 in, Flux 0.030 in to 0.045 in
Aluminum - Material Thickness
14 ga to 3/8 in
Overall Width
19 in
Overall Depth
40 in
For Maximum Material Thickness
1/2 in (Mild Steel)
Minimum Wire Diameter
0.023 in (Solid Steel), 0.023 in (Stainless Steel), 0.03 in (Flux-Cored), 0.6 mm (Solid Steel), 0.6 mm (Stainless Steel), 0.8 mm (Flux-Cored)
Maximum Wire Diameter
0.045 in (Flux-Cored), 0.045 in (Solid)
For Minimum Material Thickness
22 ga (Mild Steel)
Power Cord Length
10 ft

Description

The MILLER ELECTRIC 907322 Millermatic 252 MIG Welder is a single-phase, DC-powered wire feed welding machine designed for MIG (GMAW) and Flux-Cored (FCAW) processes. It operates within an output range of 30 to 300 amps DC and supports input voltages of 220/230/240V AC, 460/480V AC, and 575V AC at 60 Hz. The unit accommodates both mild steel and aluminum materials, handling thicknesses from 22 gauge up to 1/2 inch for mild steel and 14 gauge to 3/8 inch for aluminum. With a rated output of 200A at 28V (60%) and 250A at 28V (40%), this welder provides flexibility for various metalworking requirements. The machine includes essential accessories and comes mounted on wheels for mobility.

Key Features:

  • Series and Model: Millermatic 252, Model 907322
  • Welding Processes: MIG (GMAW) and Flux-Cored (FCAW) welding
  • Output Range: 30 to 300A DC; Duty Cycle 60% at 200A, 40% at 250A
  • Input Power: Operates on 220/230/240V AC, 460/480V AC, or 575V AC single-phase; 60 Hz frequency
  • Polarity: DC constant voltage (CV) mode
  • Material Compatibility: Mild steel, stainless steel, and aluminum
  • Wire Diameter Capacity: 0.023 to 0.045 in depending on wire type
  • Wire Feed Speed: 50 to 700 in/min
  • Included Components: M-25 MIG gun (15 ft, 250A), work cable with clamp (10 ft), argon mix regulator with hose, extra contact tips, dual-groove drive rolls, running gear, and consumable compartment
  • Features: Infinite voltage control with digital meters, integrated timer menu, Auto-Gun Detect, dual gear-driven aluminum drive system, line voltage compensation, single low cylinder rack
  • Dimensions and Weight: 30 in H × 19 in W × 40 in D; 205 lb
  • Standards: CSA Certified
  • Portability: Wheeled-mounted configuration with 10 ft power cord and 6-50P plug type
