This item is Discontinued.

Miller Electric TIG Welder, Dynasty 400 Series, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, 575V AC 951000005

This item is Discontinued.

Miller Electric

TIG Welder, Dynasty 400 Series, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, 575V AC (Discontinued)

Mfr # 951000005
Zoro # G8093149
UPC # 715959648462
Country of Origin United States
Category TIG Welders
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
951000005
Zoro #
G8093149
UPC #
715959648462
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.012 in to 5/8 in
Aluminum - Material Thickness
0.015 in to 5/8 in
Overall Depth
43.75 in
Overall Height
43.13 in
Overall Width
23.13 in
Power Cord Length
8 ft
For Minimum Material Thickness
0.012 in (Steel), 0.015 in (Aluminum)
For Maximum Material Thickness
5/8 in (Aluminum), 5/8 in (Steel)
For Aluminum Thickness - Minimum
3/200 in
For Steel Thickness - Minimum
3/250 in
For Stainless Steel Thickness - Maximum
5/8 in
For Aluminum Thickness - Maximum
5/8 in

Details

Welder Industrial Class
Heavy
Item
TIG Welder
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208/220/230/240/380/400/460/480/575V AC
Rated Output
300A @ 32V, 60%
Welder Max. Output Amps
400
Welder Min. Output Amps
3
Welder Duty Cycle
80 %
Series
Dynasty 400

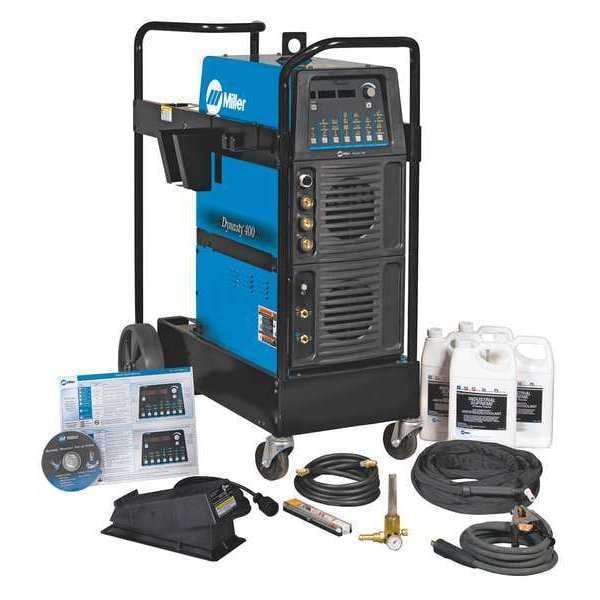

Includes
(4) 1g Coolant, Coolmate 3.5, RFCS-14HD remote foot control and receiver (194744), Runner Cart, Weldcraft W-375 torch kit and accessories (301268)
Welder Input Phase
1 or 3
Welded Material
Aluminum, Mild Steel, Stainless Steel
Application
Aerospace, Aluminum Ship Repair, Anodized Aluminum Fabrication, Heavy Fabrication, Pipe and Tube Fabrication, Precision Fabrication
Polarity
AC/DC
Power Source Weight
134 lb
Input (Amps)
36/33/19/16/13/13.1/12.5
Welder Input Hz
50/60
Features
Wireless Remote Compatible
Phase
Single/Three
Standards
CE, CSA, ISO
Weight
134 lb
Stick Welding Output @ Duty Cycle
250 A @ 29 V, 60% (1-Phase), 300 A @ 32 V, 60% (3-Phase)
Welding Mode
CC
Amperage Range
3 to 400 A
Max. Input Current
38 A @ 208V (Three-Phase), 52 A @ 208V (Single-Phase)
For Material Type
Aluminum, Specialty Metals, Stainless Steel, Steel
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Input Frequency
50/60 Hz
Plug Type
Bare Leads
Remote Control
Foot Control Included
Stick Welding Minimum Output Current
3 A
Pulse Frequency
0.1 to 5000 pulses/second
Power Cord Included
Yes
TIG Welding Maximum Output Current
400 A
Open Circuit Voltage
75V DC
TIG Welding Output @ Duty Cycle
250 A @ 29 V, 60% (1-Phase), 300 A @ 32 V, 60% (3-Phase)
Stick Welding Maximum Output Current
400 A
TIG Welding Minimum Output Current
3 A
Color
Blue
Remote Connection Type
14-Pin (Miller)
Model
951694
Amperage TIG - Minimum
3 A
Welding Power Source Type
CC
Maximum Input Current
38 A @ 208V (Three-Phase), 52 A @ 208V (Single-Phase)
Amperage Stick - Minimum
3 A
Rated Output @ Duty Cycle (TIG)
250 A @ 29 V, 60% (1-Phase), 300 A @ 32 V, 60% (3-Phase)
Amperage Stick - Maximum
400 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum
400 A
Rated Output @ Duty Cycle (Stick)
250 A @ 29 V, 60% (1-Phase), 300 A @ 32 V, 60% (3-Phase)

Description

TIG Welder, For Material Type Aluminum, Specialty Metals, Stainless Steel, Steel, For Maximum Material Thickness 5/8 in (Aluminum), 5/8 in (Steel), For Minimum Material Thickness 0.012 in (Steel), 0.015 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 38 A @ 208V (Three-Phase), 52 A @ 208V (Single-Phase), Phase Single/Three, Polarity AC/DC, Series Dynasty 400, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 3 A
