This item is Discontinued.

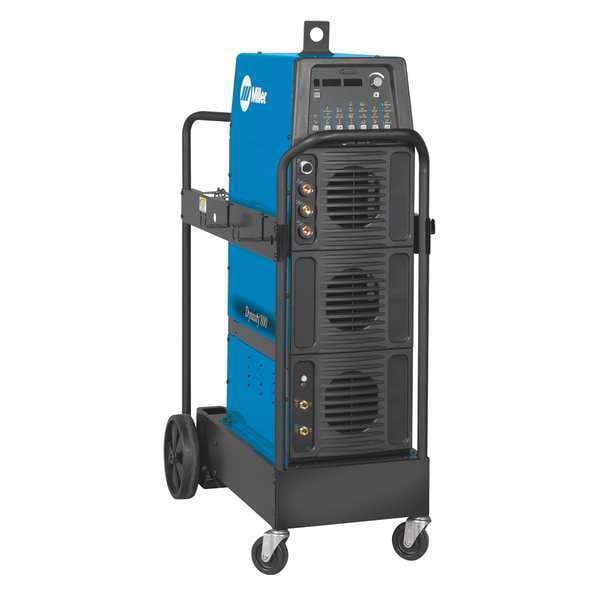

Miller Electric TIG Welder, Dynasty 800 Series, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, 575V AC 907719001

This item is Discontinued.

Miller Electric

TIG Welder, Dynasty 800 Series, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, 575V AC (Discontinued)

Mfr # 907719001
Zoro # G8093200
UPC # 715959654197
Country of Origin United States
Category TIG Welders
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
907719001
Zoro #
G8093200
UPC #
715959654197
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.020 in to 1 in
Aluminum - Material Thickness
0.020 in to 1 in
Overall Width
23.13 in
Overall Depth
43.75 in
Overall Height
53.13 in
For Maximum Material Thickness
1 in (Aluminum), 1 in (Steel)
For Minimum Material Thickness
0.020 in (Aluminum), 0.020 in (Steel)
For Steel Thickness - Minimum
1/50 in
For Stainless Steel Thickness - Maximum
1 in
For Aluminum Thickness - Minimum
1/50 in
For Aluminum Thickness - Maximum
1 in

Details

Item
TIG Welder
Welder Industrial Class
Heavy
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208/220/230/240/380/400/460/480/575V AC
Rated Output
600A @ 44V, 60%
Welder Max. Output Amps
800
Welder Min. Output Amps
5
Welder Duty Cycle
100 %
Series
Dynasty 800
Welder Input Hz
50/60
Application
Aerospace Ship Repair, Heavy Fabrication, Pipe and Tube Fabrication, Precision Fabrication
Welded Material
Aluminum, Mild Steel, Stainless Steel
Input (Amps)
97/88/51/44/35/35/34
Power Source Weight
370 lb
Includes
Coolmate 3.5, Runner Cart
Welder Input Phase
1 or 3
Features
Blue Lightning(TM) HF, Cooler Power Supply, Cooler-On-Demand(TM), Fan-On-Demand(TM), Hot Start(TM), Independent Amplitude/Amperage, Meter Calibration, Operator Friendly Interface, Pro-Set(TM), Program Memory
Polarity
AC/DC
Phase
Single/Three
Standards
CE, CSA, ISO
TIG Welding Output @ Duty Cycle
600 A @ 44 V, 60%
For Material Type
Aluminum, Specialty Metals, Stainless Steel, Steel
Welding Mode
CC
Open Circuit Voltage
75V DC
Plug Type
Bare Leads
TIG Welding Minimum Output Current
5 A
Weight
370 lb
Stick Welding Output @ Duty Cycle
600 A @ 44 V, 60%
Color
Blue/Black
Stick Welding Maximum Output Current
800 A
Max. Input Current
136 A @ 208V (Single-Phase), 96 A @ 208V (Three-Phase)
Power Cord Included
No
Remote Control
No
Stick Welding Minimum Output Current
5 A
Amperage Range
5 to 800 A
TIG Welding Maximum Output Current
800 A
Input Frequency
50/60 Hz
Model
907719001
Amperage Stick - Minimum
5 A
Welding Power Source Type
CC
Amperage Stick - Maximum
800 A
Maximum Input Current
136 A @ 208V (Single-Phase), 96 A @ 208V (Three-Phase)
Rated Output @ Duty Cycle (Stick)
600 A @ 44 V, 60%
Amperage TIG - Minimum
5 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
600 A @ 44 V, 60%
Amperage TIG - Maximum
800 A

Description

TIG Welder, For Material Type Aluminum, Specialty Metals, Stainless Steel, Steel, For Maximum Material Thickness 1 in (Aluminum), 1 in (Steel), For Minimum Material Thickness 0.020 in (Aluminum), 0.020 in (Steel), Input Frequency 50/60 Hz, Max. Input Current 136 A @ 208V (Single-Phase), 96 A @ 208V (Three-Phase), Phase Single/Three, Polarity AC/DC, Series Dynasty 800, Stick Welding Maximum Output Current 800 A, Stick Welding Minimum Output Current 5 A

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
