This item is Discontinued.

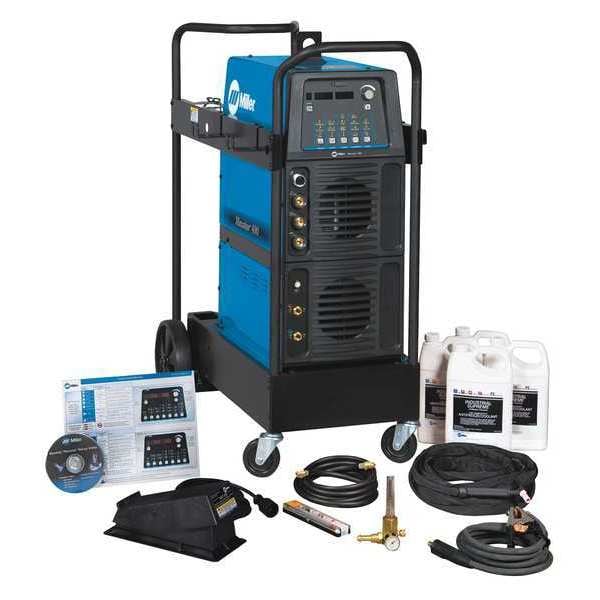

Miller Electric TIG Welder, Maxstar 400 Series, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, 575V AC 951000007

This item is Discontinued.

Miller Electric

TIG Welder, Maxstar 400 Series, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, 575V AC (Discontinued)

Mfr # 951000007
Zoro # G8093115
UPC # 715959648448
Country of Origin United States
Category TIG Welders
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
951000007
Zoro #
G8093115
UPC #
715959648448
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
0.012 in to 5/8 in
Overall Depth
43.75 in
Overall Height
43.13 in
Overall Width
23.13 in
For Maximum Material Thickness
5/8 in (Steel)
Power Cord Length
8 ft
For Minimum Material Thickness
0.012 in (Steel)
For Stainless Steel Thickness - Maximum
5/8 in
For Steel Thickness - Minimum
3/250 in

Details

Welder Industrial Class
Heavy
Item
TIG Welder
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208/220/230/240/380/400/460/480/575V AC
Rated Output
300A @ 32V, 60%
Welder Max. Output Amps
400
Welder Min. Output Amps
3
Welder Duty Cycle
80 %
Series
Maxstar 400
Features
Blue Lightning(TM) HF, Cooler Power Supply, Cooler-On-Demand(TM), Fan-On-Demand(TM), Hot Start(TM), Independent Amplitude/Amperage, Meter Calibration, Operator Friendly Interface, Pro-Set(TM), Program Memory
Welder Input Hz
50/60
Polarity
DC
Includes
(4) 1g Coolant, Coolmate 3.5, Maxstar(R) 400, RFCS-14HD remote foot control and receiver (194744), Weldcraft W-375 torch kit and accessories (301268)
Input (Amps)
33/30/17/15/12/12/11.6
Welder Input Phase
1 or 3
Power Source Weight
134 lb
Application
Aerospace Ship Repair, Heavy Fabrication, Pipe and Tube Fabrication, Precision Fabrication
Welded Material
Mild Steel, Stainless Steel
Phase
Single/Three
Standards
CE, CSA, ISO
Stick Welding Output @ Duty Cycle
300 A @ 32 V, 60%
For Material Type
Specialty Metals, Stainless Steel, Steel
Welding Mode
CC
Open Circuit Voltage
75V DC
Weight
308 lb
TIG Welding Minimum Output Current
3 A
Stick Welding Maximum Output Current
400 A
Max. Input Current
33 A @ 208V (Three-Phase), 48 A @ 208V (Single-Phase)
Amperage Range
3 to 400 A
Input Frequency
50/60 Hz
Plug Type
Bare Leads
TIG Welding Output @ Duty Cycle
300 A @ 32 V, 60%
Stick Welding Minimum Output Current
3 A
Remote Control
Yes
TIG Welding Maximum Output Current
400 A
Color
Blue/Black
Model
951692
Amperage TIG - Minimum
3 A
Welding Power Source Type
CC
Rated Output @ Duty Cycle (Stick)
300 A @ 32 V, 60%
Maximum Input Current
33 A @ 208V (Three-Phase), 48 A @ 208V (Single-Phase)
Rated Output @ Duty Cycle (TIG)
300 A @ 32 V, 60%
Amperage Stick - Minimum
3 A
Amperage Stick - Maximum
400 A
Amperage TIG - Maximum
400 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)

Description

TIG Welder, For Material Type Specialty Metals, Stainless Steel, Steel, For Maximum Material Thickness 5/8 in (Steel), For Minimum Material Thickness 0.012 in (Steel), Input Frequency 50/60 Hz, Max. Input Current 33 A @ 208V (Three-Phase), 48 A @ 208V (Single-Phase), Phase Single/Three, Polarity DC, Series Maxstar 400, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 3 A, Stick Welding Output @ Duty Cycle 300 A @ 32 V, 60 Percent

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
