Venture150S, w\Battery & Charger Package

Mfr # 951000202
Zoro # G116296639

5,893.99

Free Shipping & Returns

Zoro's best price: not eligible for any other offers or promotions

Key Features

Welding Processes

Stick, TIG DC

Series

Venture(TM)

Includes

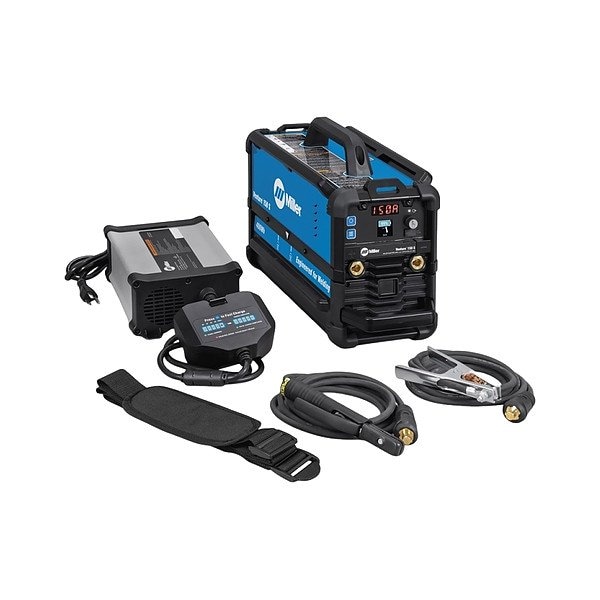

(8) Rubber Bumpers/feet, 10 ft (3 m) Stick Electrode Holder with 50 mm Dinse-Style Connector, 10 ft (3 m) Work Cable with Clamp and 50 mm Dinse-style Connector, 400 Wh Battery, Battery Charger, Shoulder Strap with Pad, Venture 150 S Power Source

Polarity

AC, DC

Phase

Single

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 951000202
Zoro #: G116296639
UPC #: 715959719148
Country of Origin: United States

Dimensions

For Stainless Steel Thickness - Minimum: 1/50 in
For Stainless Steel Thickness - Maximum: 3/16 in
For Steel Thickness - Minimum: 1/50 in
For Steel Thickness - Maximum: 3/16 in

Details

Item: Battery Powered Welder
Welding Processes: Stick, TIG DC
Series: Venture(TM)
Includes: (8) Rubber Bumpers/feet, 10 ft (3 m) Stick Electrode Holder with 50 mm Dinse-Style Connector, 10 ft (3 m) Work Cable with Clamp and 50 mm Dinse-style Connector, 400 Wh Battery, Battery Charger, Shoulder Strap with Pad, Venture 150 S Power Source
Polarity: AC, DC
Phase: Single
Standards: CSA E60974-1, ETL
TIG Welding Minimum Output Current: 10 A
Start Type: Hot Start(TM) Technology
Model: Venture(TM) 150 S
MIG Welding Maximum Output Current: 150 A
Rechargeable Battery: Rechargeable
TIG Welding Output @ Duty Cycle: 10 to 160 A @ 100%
Stick Welding Maximum Output Current: 160 A
Stick Welding Minimum Output Current: 20 A
Welding Mode: CC
TIG Arc Start Feature: Lift-Arc
Open Circuit Voltage: 80 V DC
For Material Type: Stainless Steel, Steel
Enhanced Process: Stick (SMAW), TIG DC (GTAW-DC)
Stick Welding Output @ Duty Cycle: 20 to 150 A @ 100%
Amperage Stick - Maximum: 150 A
Welding Power Source Type: CC
Amperage TIG - Minimum: 10 A
Amperage Stick - Minimum: 20 A
Process: Stick Welding (SMAW), DC TIG Welding (GTAW-DC)
Rated Output @ Duty Cycle (TIG): 10 to 160 A @ 100%
Amperage TIG - Maximum: 160 A
Rated Output @ Duty Cycle (Stick): 20 to 150 A @ 100%

Description

PACKAGE

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov

Hazardous material
