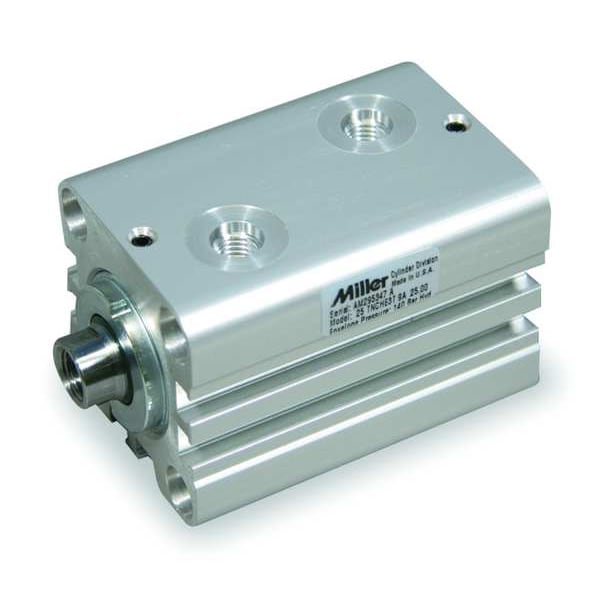

Cylinder, hyd, 32mm Bore, 100mm Stroke
Mfr # 1H000065862
Zoro # G3089721
product price: $581.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Bore Dia.
32 mm
Stroke Length
100 mm
Retracted Length
164 mm
Extended Length
264 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1H000065862
Zoro #
G3089721
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
32 mm
Stroke Length
100 mm
Retracted Length
164 mm
Extended Length
264 mm
Rod Dia.
18 mm
Port Size
#4 SAE
Dimension EL (mm)
20.5
Bore Dia. (mm)
32
Dimension MM (mm)
18
Dimension C (mm)
8
Dimension ZL (mm)
64
Dimension Kk (In.)
7/16-20
Dimension RT (mm)
3
Dimension WP (mm)
13
Dimension EE (SAE)
#4
Dimension FB (mm)
7
Port Size (SAE)
#4
Dimension EK (mm)
11
Dimension FC (mm)
11
Dimension LB (mm)
51
Dimension A (mm)
15
Rod Dia. (mm)
18
Dimension D (mm)
15
Dimension FD (mm)
6.5
Dimension R (mm)
47
Dimension RD f9 (mm)
36
Dimension NA (mm)
17
Dimension E (mm)
62
Rod Thread Size
7/16"-20
Description
Compact Hydraulic Cylinder, Double Acting, Bore Dia. 32 mm, Stroke Length 100 mm, Port Size #4 SAE, Rod Dia. 18 mm, Rod Thread Size 7/16 In.-20, Retracted Length 164 mm, Max. Pressure 2,030 psi, Aluminum Body Material, Aluminum Piston Material, Extended Length 264 mm, Max. Push Capacity 2,540.4 lb
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
