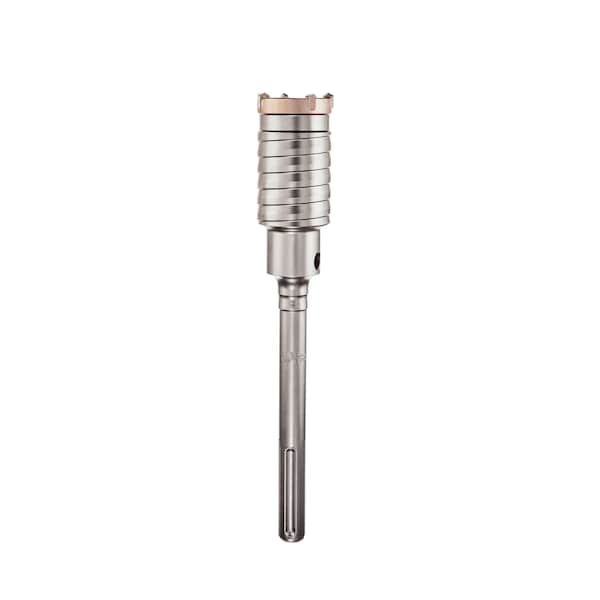

1-1/2 in. x 11-3/8 in. One Piece SDS-MAX Masonry Core Bit
Mfr # 48-20-5400
Zoro # G205293365
Key Features
Specifications
Product Information
- MFR #
- 48-20-5400
- Zoro #
- G205293365
- UPC #
- 045242315482
- Country of Origin
- Germany
Dimensions
- Drill Bit Size
- 1-1/2 in.
- Overall Length
- 11 3/8 in
- Core Diameter
- 1 1/2 in
- Maximum Drilling Depth
- 3 in
- Shank Diameter
- 45/64 in
- Core Body Length
- 3 in
Details
- Item
- 1-1/2" X 11-3/8" One Piece SDS-MAX Core Bit
- Core Bit Cutter Material
- Carbide Tipped
- Shank Type - Machining
- SDS Max
- Includes
- 1-Piece SDS-MAX Core Bit
- Measurement System
- Fractional Inch
- For Tool Type
- Rotary Drill
- Primary Material Application
- Concrete, Masonry
- Wet or Dry Application
- Dry
- Centering Bit Required
- No
- Connection Type
- Removable
- Shank Included
- Yes
- Type
- Core
- Cutting Tip Form
- Asymmetrical and Alternating Teeth
- Decimal Equivalent
- 1.5 in
- Centering Bit Included
- No
- For Workpiece Material
- Concrete, Masonry
- Shank Type
- SDS-Max
Description
Milwaukee’s 1-piece Carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a Kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Use of centering bit 48-20-5495 is recommended (not included). Use drift key 48-20-5497 to remove centering bit from the 1-piece core bit. The 1-piece core bits are available in SDS-Max or spline shanks. They come in a variety of diameters ranging from 1-1/2 in. to 6 in. with overall lengths of 11-3/8 in. or 22 in. and a drilling depth of 3 in. The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The 1-piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.
- • Asymmetrical and alternating teeth for faster material pulverization
- • Thick-wall core body for durability even in large hammers
- • Centering tip to reduce bit walking and create exact spot drilling
- • Remove centering bit with drift key 48-20-5497 (not included)
- • Drilling depth 3 in.
- • Includes (1) 48-20-5400 Milwaukee 1-1/2 in. x 11-3/8 in. 1-piece SDS-Max core bit
