  9. 12:1 Infrared Temp-Gun NIST

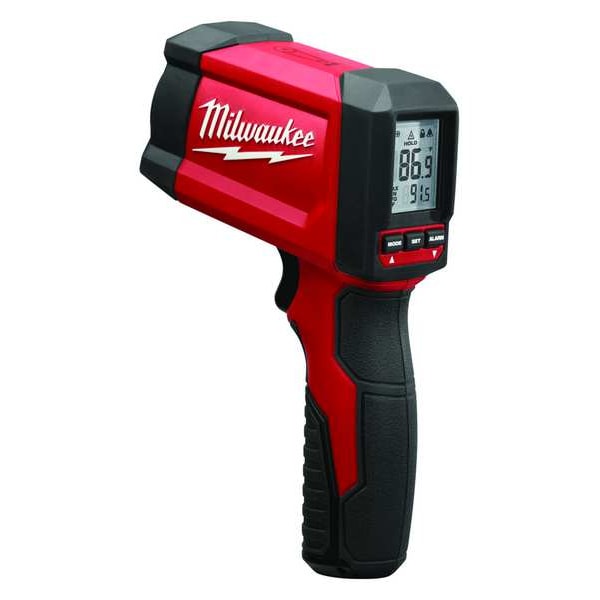

Milwaukee Tool 12:1 Infrared Temp-Gun NIST 2268-20NST - main

12:1 Infrared Temp-Gun NIST

  • Mfr # 2268-20NST

  • Zoro # G2014595

product price: $259.00
/ea
Free Shipping & Returns

Key Features

Focus Spot Size and Distance - Infrared
1 in @ 12 in
Temp. Range (F) - Infrared
-22 Degrees to 1022 Degrees
Emissivity
Fixed 0.95
Temp. Accuracy (F) - Infrared
+/-1.8%
Temp. Accuracy (C) - Infrared
+/-1.8% of Reading
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2268-20NST
Zoro #
G2014595
UPC #
045242351961
Country of Origin
China

Dimensions

Focus Spot Size and Distance - Infrared
1 in @ 12 in
Focus Spot Size and Distance
1" @ 12"
Manufacturers Warranty Length
5 yr
Battery Size
9V
Manufacturer Warranty Length
5 yr

Details

Item
Infrared Thermometer
Temp. Range (F) - Infrared
-22 Degrees to 1022 Degrees
Emissivity
Fixed 0.95
Temp. Accuracy (F) - Infrared
+/-1.8%
Temp. Accuracy (C) - Infrared
+/-1.8% of Reading
Laser Sighting
Single Dot
Calibration Certificate Included
Yes
Data Logging - Instrument
No
Display - IR Camera
LCD
Temp. Range (C) - Infrared
-30 Degrees to 550 Degrees
Trigger
Yes
Repeatability
+/-0.8% of Reading or +/-1 Degrees C
Spectral Response - Infrared
8.0 to 14.0um
Special Features
Premium LCD for Clearest Readings, Simplified Buttons and Set Up, 7-Point Reinforced Housing, Raised Over-Molding Protect Lens and Screen From Direct Impact, Survives 6 ft Drop
Battery Type
Alkaline (9V)
Laser Sighting - Infrared
Single Dot
Display
LCD
Memory
Max/Min/Avg/Dif
Response Time
500 msec
Memory - Instrument
Avg., Dif., Max., Min
Temperature Alarm - Thermometer
High, Low
Temp. Range (C)
-30 Degrees to 550 Degrees C
Alarm Indication
Visual
Spectral Response
8.0 to 14 uM
Accuracy
+/-1.8%
Resolution
0.1 Degrees F/C
Item - Infrared Thermometer
Infrared Thermometer
Calibration Certificate
NIST
Temp. Range (F)
-22 Degrees to 1022 Degrees F
Alarm
High/Low
Standards
Class II Laser, FCC
Data Hold
Yes
Includes
(1) 9V Battery, Manual, NIST Certification
Operating Temp. Range
32 Degrees to 122 Degrees F
Data Logging
No
Environmental Applications - Air Conditioners and Heat Pumps
Non-Medical
Features
Clear Button Functions, Fully Bumpered Nose, Overmolded Grip, Shielded Lcd Survives 6 ft Drops
Minimum Emissivity Setting
0.95
Digital Display Screen Type
LCD
Resolution Degrees C
0.1 Degrees C
Batteries Included
Yes
Battery Voltage
9V
Body Style
Full Size
Mounting Style
Handheld Only
Calibration Certificate Type
NIST
Intrinsic Safety
Not Specified Intrinsically Safe
Secondary Measuring Method
No Secondary Measuring Method
Resolution Degrees F
0.1 Degrees F
Accuracy Degrees C
+/-1.8% of Reading
Laser Sighting Type
Single Dot
Includes Work Light
No Work Light Included
Maximum Emissivity Setting
0.95
Maximum Temperature Measured Degrees F
1,022 Degrees F
Distance To Spot Ratio
12:1
Minimum Temperature Measured Degrees C
-30 Degrees C
Accuracy Degrees F
+/-1.8% of Reading
Maximum Operating Temperature Degrees F
122 Degrees F
Maximum Temperature Measured Degrees C
550 Degrees C
Minimum Temperature Measured Degrees F
-22 Degrees F
Emissivity Adjustability
Fixed
Minimum Operating Temperature Degrees F
0 Degrees F
Alert Type
Sound
Number of Batteries Required
1
Testing Functions
Average, Difference, Maximum Temperature, Minimum Temperature
Temperature Alerts
High Temperature, Low Temperature
Battery Run Time
12 hr
Battery Chemistry
Alkaline

Description

Infrared Thermometer, Laser Sighting Type Single Dot, Secondary Measuring Method No Secondary Measuring Method, Emissivity Adjustability Fixed, Distance To Spot Ratio 12:1, Alert Type Sound, Field of View Not Applicable, Minimum Emissivity Setting 0.95, Maximum Emissivity Setting 0.95, Minimum Temperature Measured Degrees F -22 Degrees F, Maximum Temperature Measured Degrees F 1,022 Degrees F, Minimum Operating Temperature Degrees F 0 Degrees F
