Shop All Step Drill Bits
Milwaukee Tool

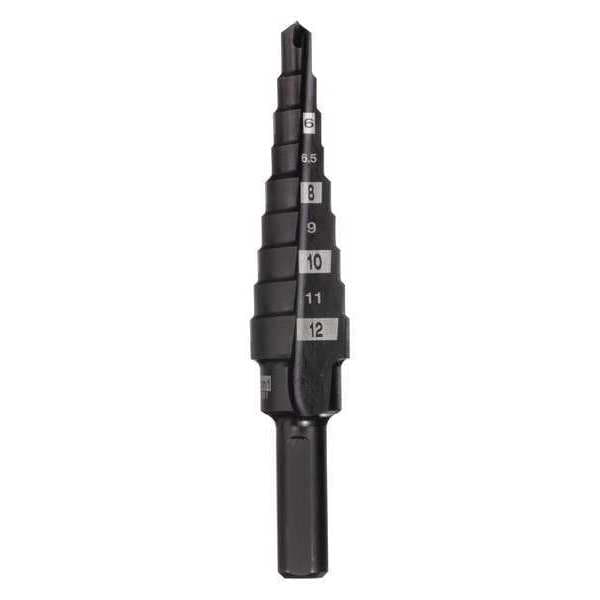

4MM-12MM Step Bit, 9 Hole

product price: $30.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Material High Speed Steel
  • Finish black oxide
  • Number of Pieces 1
  • Number of Flutes 2
See all product information

Product Information

Dimensions

Size Range 4 mm to 12 mm
Shank Size 1/4 in
Sizes Included 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm
Number of Hole Sizes 9
Drill Bit Sizes Included 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm
Overall Length 2 9/16 in
Bit Length 2-39/64"
Size 4mm - 12mm
Maximum Hole Size 12 mm
Number Hole Sizes 9
Minimum Hole Size 4 mm
Shank Diameter 1/4 in
Maximum Drilling Depth 65 mm

Details

Promotion Restriction Not eligible for promotion
Material High Speed Steel
Finish black oxide
Number of Pieces 1
Number of Flutes 2
Shank Type Round with (3) Flats
Step Thickness 1 mm
Shank Shape Round with (3) Flats
Drill Bit Finish Black Oxide
Impact Rated No
Drill Bit Material High Speed Steel
Item Step Drill Bit
Decimal Equivalent 4, 5, 6, 7, 8, 9, 10, 11, 12
Measurement System Metric
Step Increments 1 mm
Shank Type - Machining Straight with Three Flats
Cutting Direction Right Hand
Material - Machining High Speed Steel
Finish - Machining Black Oxide
Sub Brand Secure-Grip(TM)
Primary Material Application Steel, Plastic

Description

Step Drill Bit, High Speed Steel, Black Oxide, 4 mm to 12 mm Size Range, Straight with Three Flats, 1/4 in Shank Diameter, 2 9/16 in Overall Length, Maximum Drilling Depth 65 mm
