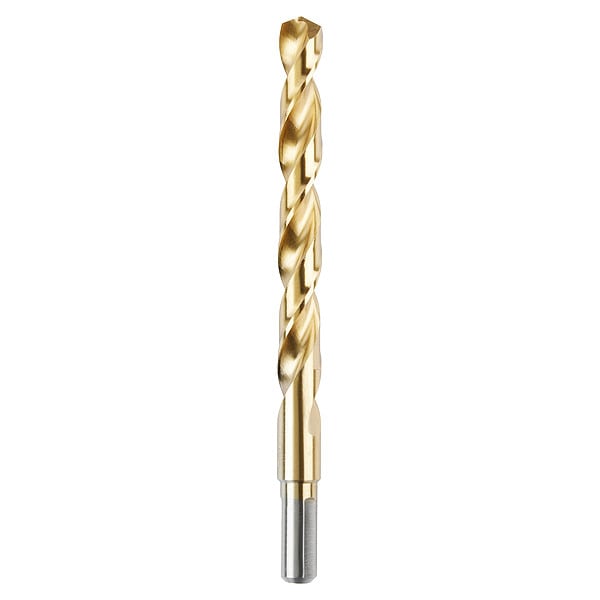

7/16" Thunderbolt Titanium Coated Drill Bit

Mfr # 48-89-2225
Zoro # G4464074

18.97

Zoro's best price: not eligible for any other offers or promotions

Key Features

Drill Bit Size

7/16 in

Overall Length

5 1/2 in

Drill Bit Point Angle

135 Degrees

Material

High Speed Steel

Finish

Gold Ferrous Oxide

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 48-89-2225
Zoro #: G4464074
UPC #: 045242188031
Country of Origin: China

Dimensions

Drill Bit Size: 7/16 in
Overall Length: 5 1/2 in
Drilling Depth: 4-1/16 in
Shank Dia.: 7/16 in
Flute Length: 4 1/16 in
Drill Length Class: Jobber-Length
Maximum Drilling Depth: 4 1/16 in
Wire Rope Length: 5 1/2 in
Length: 5 1/2 in

Details

Item: Jobber Length Drill Bit
Drill Bit Point Angle: 135 Degrees
Material: High Speed Steel
Finish: Gold Ferrous Oxide
Number of Flutes: 2
Shank Type: Straight
Impact Rated: No
Cutting Direction: Right Hand
Shank Shape: Round
Features: Split Point, Thunderbolt(R) Web, Parabollic Flute
Decimal Equivalent: 0.4375
Standards: Not Rated
Drill Bit Point Type: Split Point
Web Construction: Tapered
Material - Machining: High Speed Steel
Flute Type: Parabolic
Measurement System: Fractional Inch
Shank Type - Machining: Reduced with Three Flats
Finish - Machining: TiN
Primary Material Application: Aluminum, Plastic, Steel, Wood
Coolant Fed: Non-Coolant Through
Point Type: Split Point
List Number: Thunderbolt
Spiral Direction: Right Hand
Material Grade - Machining: Heavy Duty

Description

Jobber Length Drill Bit, Drill Bit Size 7/16 in, Drill Bit Point Angle 135 Degrees , High Speed Steel, TiN, Decimal Equivalent 0.4375, Fractional Inch, Drill Bit Point Type Split Point, Non-Coolant Through
