  11. Adjustable Position Electromagnetic Drill Press w/No. 3 MT Motor
This item is Discontinued.

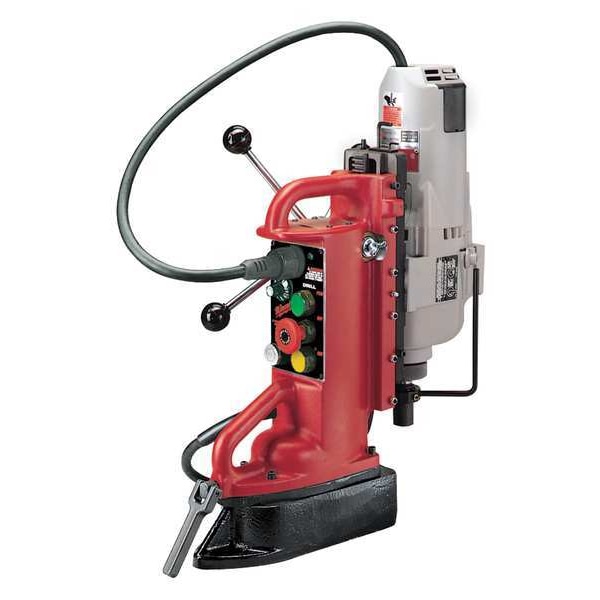

Milwaukee Tool Adjustable Position Electromagnetic Drill Press w/No. 3 MT Motor 4209-1

Adjustable Position Electromagnetic Drill Press w/No. 3 MT Motor (Discontinued)

  • Mfr # 4209-1
  • Zoro # G2329257
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4209-1
Zoro #
G2329257
UPC #
045242012862
Country of Origin
United States

Dimensions

Overall Height
25 1/4 in
Tool Length
15 in
Chuck Size
1 1/4 in
Tap Size Capacity
1 in
Cord Length
9 ft
Overall Length
15 in

Details

Item
Magnetic Drill Press
Voltage
120V AC
Spindle Taper
MT3
Drill Travel
11 in
Capacity Steel
1 1/4 in
No Load RPM
750/375
Amps
11.5 A
Drill Point Pressure
1,600 lb
Magnet Type
Electro
Corded/Cordless
Corded
Includes
6 ft Safety Chain
Tool Weight
72 lb
Motor HP
1 17/20 hp
Drill to Center From Base
5 3/32 in
Corded/Banded
Corded
Features
Line Lock Out, Soft Start
Motor Base No. Included
6Z362
Motor Stock No. Included
1Y056
Reversible
Yes
Power Down Feed Included
No
Current
11.5 A
Drilling Capacity in Cast Iron
1 1/4 in
Minimum Spindle Speed
375 RPM
Variable Speed
Yes
Tapping Capacity in Cast Iron
1"-14
Drill Base Model Included
4203
Number of Pieces
2
Phase
Single-Phase
Drill Motor Model Included
4292-1
Power Source
Corded
Chuck Style
Morse Taper
Base Type
Adjustable
Tapping Capacity in Aluminum
1"-14
Tapping Capacity in Masonry
1"-14
Var. Speed
Variable Speed
Spindle Travel
11 in
Tool Style
Large
Application
Drilling
Maximum Spindle Speed
750 RPM
Drilling Capacity in Steel
1 1/4 in
Spindle Speed
375 RPM - 750 RPM
Tapping Compatible
Yes
Tapping Capacity in Wood
1"-14
Drilling Capacity in Wood
1 1/4 in
Drilling Capacity in Masonry
1 1/4 in
Maximum Core Bit Compatibility
1 1/4 in
Tapping Capacity in Steel
1"-14
Coolant System
No
Drilling Capacity in Aluminum
1 1/4 in
Number of Spindle Speeds
2

Description

This Milwaukee 4209-1 Adjustable Position Electromagnetic Drill Press is the best choice for drilling holes in steel. It features a forward/reverse electronic feedback speed control, line lock out and soft start. The magnetic drill press has a 1 17/20 hp motor with 750/375 no load RPM. This unit's torque is 10 ft./lbs., allowing you to bore through thicker steel than other units. This electric drill press comes complete with a spindle taper of MT3 and chuck size of 1 1/4 in.. If you're looking for an electric drill press that can handle tough jobs like boring through thick steel plates or drilling large holes in metal panels without overheating or bogging down this Milwaukee 4209-1 Adjustable Position Electromagnetic Drill Press is what you need.
