Shop MILWAUKEE TOOL

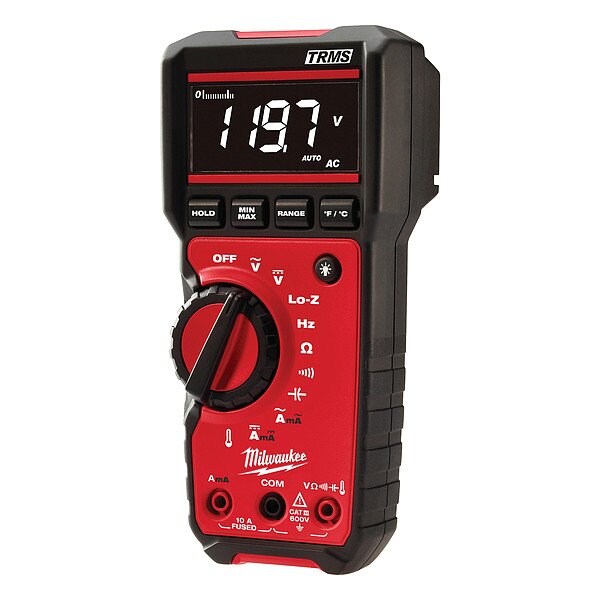

DigitalMultimeter, TRMS, 10A, 600VAC/DC

  • Mfr # 2217-20

  • Zoro # G722433268

product price:
$
134.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type
Backlit LCD
Data Hold
No
Audible Continuity
No
Capacitance Measurement Accuracy
+/-1.9%
Batteries Included
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2217-20
Zoro #
G722433268
UPC #
45242173471
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
11.02 in
Overall Width
2.48 in
Depth
7.48 in
Battery Size
AA
Manufacturers Warranty Length
5 yr

Details

Display Type
Backlit LCD
Data Hold
No
Audible Continuity
No
Capacitance Measurement Accuracy
+/-1.9%
Batteries Included
Yes
Maximum Capacitance Measurement
1,000 uF
Temperature Measurement Resolution
0.2 Degrees F
Voltage Units
V
Standards
CE, UL
IP Rating
Not Rated
Current Units
A
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Duty Cycle
Duty Cycle Test Included
Maximum Temperature Measurement
752 Degrees F
Resistance Measurement Resolution
0.01 megaohm
Maximum DC Current Measurement
10 A
Maximum Storage Temperature
140 Degrees F
Calibration Certificate Included
No Certification Included
AC Response Calculation
TRMS
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Relative Humidity, Resistance, Temperature
Maximum AC Current Measurement
10 A
Frequency Measurement Accuracy
+/-0.1%
Maximum DC Voltage Measurement
600 V
AC Current Measurement Resolution
0.01 A
Capacitance Measurement Resolution
1 uF
DC Voltage Measurement Resolution
0.1 mV
Weight
1.37 lb
Includes
Batteries, Dual Banana Thermocouple, Test Leads
Minimum Storage Temperature
-40 Degrees F
Battery Access
Yes
DC Current Measurement Resolution
0.01 A
Basic DC Voltage Accuracy
+/-0.5%
Includes Auto Sensing
No Auto Sensing Included
Temperature Measurement Accuracy
+/-1.0%
Maximum Resistance Measurement
40 megaohm
Resistance Measurement Accuracy
+/-1.9%
Auto Ranging
Yes
Minimum Temperature Measurement
-40 Degrees F
Maximum AC Voltage Measurement
600 V
Minimum Operating Temperature
-40 Degrees F
CAT Safety Rating
CAT III 600V
Removable Screen
No
Auto Power Off
No
Item
Digital Multimeter
AC Voltage Measurement Resolution
0.1 mV
Basic DC Current Accuracy
+/-1.0%

Description

Digital Multimeter, Audible Continuity No, Basic AC Voltage Accuracy Not Applicable, Basic DC Voltage Accuracy +/-0.5 Percent, Data Hold No, Basic DC Current Accuracy +/-1.0 Percent, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts Not Applicable, Special Features Not Applicable, Maximum AC Current Measurement 10 A, Calibration Certificate Included No Certification Included, Maximum DC Current Measurement 10 A, Multimeter Style Not Applicable
