This item is Discontinued.

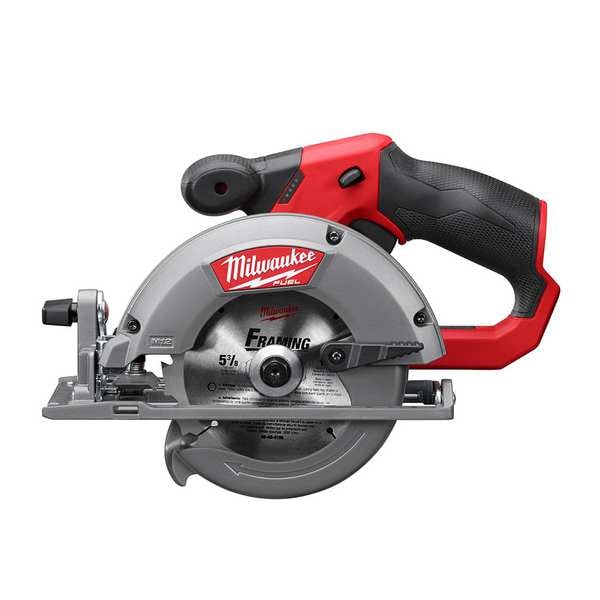

Milwaukee Tool M12 FUEL 5-3/8" Circular Saw 2530-20

M12 FUEL 5-3/8" Circular Saw (Discontinued)

  • Mfr # 2530-20
  • Zoro # G0078200
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2530-20
Zoro #
G0078200
UPC #
045242327867
Country of Origin
China

Dimensions

Blade Dia.
5 3/8 in
Max. Cutting Depth @ 0 Deg.
1 5/8 in
Max. Cutting Depth @ 45 Deg.
1 1/8 in
Cutting Depth @ 45 Degrees
1-1/8"
Cutting Depth @ 90 Degrees
1-5/8"
Tool Length
12 3/8 in
Arbor Size
3/8 in
Adjustable Cutting Depth
Adjustable Cutting Depth
Overall Length
12 3/8 in
Cutting Depth at 0 Degrees - Maximum
1 5/8 in
Blade Diameter
5 3/8 in
Cutting Depth at 45 Degrees - Maximum
1 1/8 in

Details

Item
Circular Saw
Voltage
12 V DC
Includes
5-3/8 in Blade
Features
Heavy Duty Aluminum Guards for Increased Durability, LED Light for Greater Cutline Visibility, POWERSTATE Brushless Motor for Longer Tool Life, REDLINK PLUS(TM) Intelligence for Overload Protection
Blade Side
Left
Power Source
Cordless
Bevel Angle Range
0 Degrees to 50 Degrees Left
Tool Weight
5.35 lb
Arbor Hole
10mm
Corded/Banded
Cordless
Battery Included
No
Corded/Cordless
Cordless
Series
M12
Battery Included / Bare Tool
Bare Tool
Shoe Material
Aluminum
No Load RPM
3600
Battery Pack Replacement
Milwaukee M12 Li-Ion Battery
Bevel Adjustment
0 Degrees to 50 Degrees
Drive Type
Direct Drive
Arbor Shape
Round
Wireless Tool Tracking
No
Max. Blade Speed
3,600 RPM
Variable Speed
No
Charger Included
No
Number of Batteries Included
0
Brushless Motor
Yes
Cordless Tool Kit Contents
(1) Bare Tool
Speed Control
Single
Options Included
Bare Tool
Includes Battery
Tool Only
Blade Speed - Maximum
3,600 RPM
Bevel Angle - Maximum
50 Degrees
Motor Type
Brushless
Bevel Angle - Minimum
0 Degrees
Number of Chargers Included
0
For Workpiece Material
General Purpose

Description

Circular Saw, Power Source Cordless, Series M12, Primary Saw Application General Purpose, Blade Dia. 5 3/8 in, Max. Blade Speed 3,600 RPM, Arbor Size 3/8 in, Arbor Shape Round, Blade Side Left, Drive Type Direct Drive, Shoe Material Aluminum, Adjustable Cutting Depth Adjustable Cutting Depth, Bevel Angle Range 0 Degrees to 50 Degrees Left, Max. Cutting Depth @ 0 Deg. 1 5/8 in, Max. Cutting Depth @ 45 Deg. 1 1/8 in, Variable Speed No, Tool Length 12 3/8 in, Tool Weight 5.35 lb
