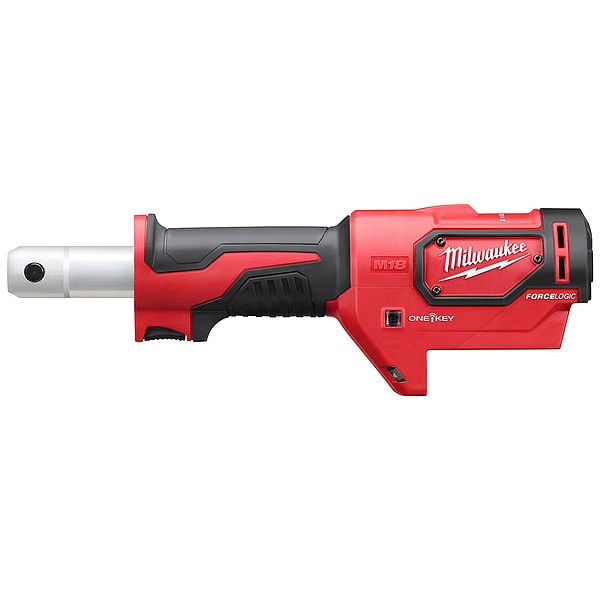

M18 FORCE LOGIC 6 Ton Utility Crimper (Tool Only)

Mfr # 2678-20
Zoro # G202753848

1,999.00

Free Shipping & Returns

Zoro's best price: not eligible for any other offers or promotions

Key Features

Voltage

Includes

(1) Utility Crimper, (1) Crimper & Cutter Bag

Crimping Force

6 ton

Tool Weight

4.65

Capacity Aluminum Lug - Crimper

8 AWG to 350 kcmil

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2678-20
Zoro #: G202753848
UPC #: 045242510429
Country of Origin: China

Dimensions

Tool Length: 14
Overall Length: 14 in
Height: 4.5
Width: 3.0
Overall Height: 5.4 in
Overall Width: 10.5 in
Manufacturer Warranty Length: 3 yr Battery, 5 yr Tool
Maximum Compatible Wire/Cable Diameter: 600 kcmil
Minimum Compatible Wire/Cable Diameter: 8 AWG
Wire Rope Length: 14 in
Length: 14 in

Details

Item: M18 FORCE LOGIC 6T Crimper (Tool Only)
Voltage: 18
Includes: (1) Utility Crimper, (1) Crimper & Cutter Bag
Crimping Force: 6 ton
Tool Weight: 4.65
Capacity Aluminum Lug - Crimper: 8 AWG to 350 kcmil
Auto-Cycle: Yes
Included Charger: No
Crimping Die Series: W Style
Capacity Copper Lug - Crimper: 8 AWG to 600 kcmil
Cordless Tool Battery Type: Li-Ion
Head Style - Crimper: Scissor
Rotating Angle (Deg.): 350 Degrees
Max. Crimping Force - Crimper: 6 ton
Corded/Cordless: Cordless
Approximate Cycle Time: 2.9 sec
Primary Application - Crimping: Electrical Wire and Cable Crimping
Battery Included / Bare Tool: 0
Handle Type: Inline
Standards: UL Listed
Color: Red/Black
Features: Electronics Keep Dirt, Dust and Moisture Out, Fully Balanced Design Provides Control and Accuracy with Class 3 Gloves, Receive Instant Pressure Verification with Green Light, Tool Records and Stores Every Crimp Made, Tool Records and Stores Every Crimp Made, One-Key Enabled for Professional Report Building
Includes Charger: No
Tool Series: FORCE LOGIC
Power Source: Cordless
Minimum Copper Lug Crimping Capacity: 8 AWG
Battery Platform: M18
Crimp Head Type: Die
Wireless Technology: ONE-KEY
Compatible Charger Manufacturer Part Number: 48-59-1812
Cycle Time: 2.9 sec
Wireless Tool Tracking: Yes
Maximum Aluminum Lug Crimping Capacity: 350 kcmil
Compatible Wire/Cable Type: ACSR, Ground Rod, Non-EHS Guy Wire
Head Style: Scissor
Includes Dies: No
Number of Dies Included: 0
Crimping Capacities: 8 AWG to 350 kcmil Aluminum Lug
Compatible Connector Type: PFM
Maximum Copper Lug Crimping Capacity: 600 kcmil
Minimum Aluminum Lug Crimping Capacity: 8 AWG
UL 486A-B Connection Capability: Milwaukee
Includes Batteries: No
Compatible Battery Manufacturer Part Number: 48-11-1820
Compatible Die Type: W
Number of Batteries Included: 0
Head Rotation: 340 Degrees
Jaw Capacity: 0.38 in
Cordless Tool Kit Contents: Bare Tool

Description

Cordless Crimping Tool, Battery Platform M18, Maximum Copper Lug Crimping Capacity 600 kcmil, Minimum Copper Lug Crimping Capacity 8 AWG, Maximum Aluminum Lug Crimping Capacity 350 kcmil, Minimum Aluminum Lug Crimping Capacity 8 AWG, Crimping Force 6 ton, Compatible Die Type W, Head Style Scissor, Number of Dies Included 0, Die Sizes included Not Applicable, Handle Type Inline, Cordless Tool Kit Contents Bare Tool, Battery Capacity Not Applicable, Includes Batteries No, Voltage 18 V
