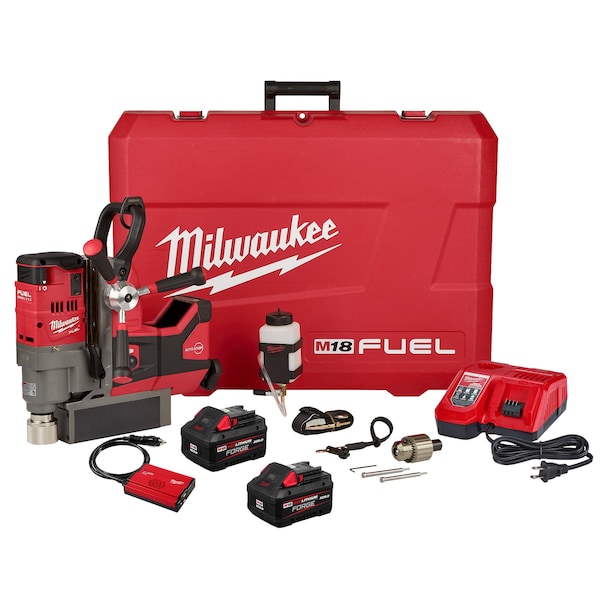

M18 FUEL 1-1/2" Lineman Magnetic Drill High Demand Kit

  • Mfr # 2788-22HD

  • Zoro # G6639641


product price: $2,999.00
/ea
Free Shipping & Returns

Key Features

Voltage
18V DC
Spindle Taper
3/4 in
Drill Travel
5 3/4 in
Capacity Steel
1 1/2 in
No Load RPM
400/690
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2788-22HD
Zoro #
G6639641
UPC #
045242478835
Country of Origin
China

Dimensions

Overall Height
15 1/2 in
Chuck Size
3/4 in
Tool Length
13 3/4 in
Overall Length
13 3/4 in
Overall Width
7 1/2 in

Details

Item
Lineman Magnetic Drill Kit
Voltage
18V DC
Spindle Taper
3/4 in
Drill Travel
5 3/4 in
Capacity Steel
1 1/2 in
No Load RPM
400/690
Drill Point Pressure
750 lb
Magnet Type
Permanent
Battery Capacity
(2) 8 Ah
Cordless Tool Battery Type
Li-Ion
Battery Included / Bare Tool
Battery Included
Corded/Cordless
Cordless
Battery Pack Replacement
494D28
Reversible
No
Includes
Lineman's Kit - HD Batteries
Tool Weight
29.5 lb
Series
M18 FUEL
Brushless Motor
Yes
Features
1 1/2 in Annual Cutter Capacity, 1/2 in Twist Bit Capacity, 2 Speed Gear Box, 5 1/8 in Motor Head Adjustment, All-Weather Performance, Delivers Up to 2000 lb Holding Force, Fuel Gauge Onboard Battery Displays Remaining Runtime, Overload Protection, Self-Powered Magnet Base, Weldon Quick Change Chuck
Corded/Banded
Cordless
Battery Included
(2) 494D28
Drill to Center From Base
1 1/4 in
Options Included
(2) 9.0Ah Batteries + Hard Case Bundle
Standards
UL Listed
Battery Series
M18
Spindle Travel
5 3/4 in
Power Down Feed Included
Yes
Drilling Capacity in Steel
1 1/2 in
Drilling Capacity in Cast Iron
1 1/2 in
Chuck Style
3/4 in Weldon
Motor Type
Brushless
Magnetic Force
2,000 lbf
Number of Batteries Included
2
Minimum Spindle Speed
400 RPM
Battery Model No.
(2) 48-11-1880
Power Source
Cordless
Cordless Tool Kit Contents
(1) Bare Tool, (2) Batteries, (1) AC/DC Vehicle Charger
Base Type
Fixed
Variable Speed
Yes
Charger Included
Yes
Coolant System
Yes
Number of Pieces
11
Maximum Spindle Speed
690 RPM
Spindle-to-Base Distance
1 1/4 in

Description

The M18 FUEL 1-1/2” Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4” steel providing a safer drilling environment in this material, and drills up to (66) 13/16” holes per charge. The M18 FUEL 1-1/2” Magnetic Drill delivers safer drilling on 1⁄4” steel by providing the industry’s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a Milwaukee POWERSTATE Brushless Motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2” annular cutter capacity. REDLINK PLUS Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery Pack provides 50% more power and runs 50% cooler than standard XC battery packs. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery is fully compatible with 200+ M18 tools.
