M18 FUEL 3/8 in. Compact Impact Wrench with Friction Ring (Tool Only)

  • Mfr # 2854-20

  • Zoro # G700690133


product price: $249.00
/ea
Free Shipping & Returns

Key Features

Voltage
18 V DC
Drive Size
3/8 in
Number of Batteries Included
0
Power Source
Cordless
Impacts per Minute
3,500
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2854-20
Zoro #
G700690133
UPC #
045242568819
Country of Origin
Viet Nam

Dimensions

Drive Size
3/8 in
Overall Length
4 3/4 in
Head Width
2 1/2 in

Details

Voltage
18 V DC
Number of Batteries Included
0
Power Source
Cordless
Impacts per Minute
3,500
Free Speed
2,400 RPM
Fastening Torque
250 ft-lb
Brushless Motor
Yes
Drive Style
Standard
Number of Speed Settings
4
Features
4-Mode Drive Control, Bolt Removal Control, Redlink Plus(TM) Intelligence
Cordless Tool Kit Contents
(1) Bare Tool
Power to Weight Ratio
104.2 ft-lb/lb
Clutch Style
Impact
Charger Included
No
Reaction Bar
No
Retainer Type
Friction Ring
Battery Series
M18(TM) REDLITHIUM(TM)
Impact Rated
Impact Rated
Tool Weight
2.4 lb
Wireless Tool Tracking
No
Breakaway Torque
250 ft-lb
Green Environmental Attribute
Product is Rechargeable
Case Included
No
Standards
ASME, UL Listed
Built-In Light
Yes
Tool Style
Compact
Handle Type
Pistol Grip
Actuation
Trigger
Series
M18 FUEL
Shop By
New Products
Drive Type
Standard
Battery Composition
Lithium-Ion (Li-ion)
Maximum RPM
2400
Variable Speed
Yes
Includes Case
Case Not Included
Product Badging
Auto Shut-Off
Torque - Maximum
250 ft-lb
Speed Control
Variable
Battery Chemistry
Li-Ion
Number of Chargers Included
0
Built-In Light Type
Individual Light(s)
Throttle Type
Trigger
Includes Reaction Bar
No Reaction Bar
No Load Speed
2,400 RPM
Tool Series
M18 FUEL(TM)
Battery Platform
M18(TM)
Drive Shape
Square
Motor Type
Brushless
Anvil Style
Standard

Description

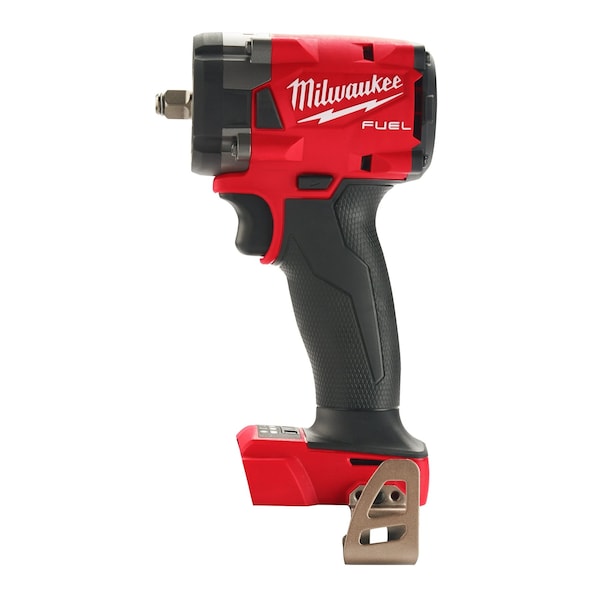

The MILWAUKEE M18 FUEL 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. The Milwaukee cordless impact wrench measures only 4.8" in length with a POWERSTATE Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The Milwaukee 3/8" impact wrench has tri-LEDs that surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18 REDLITHIUM battery pack (not included) fits M18 tools, delivering more work per charge and more work over the life of the pack.


  • 4.8" in length provides most access in tight spaces
  • The POWERSTATETM brushless motor delivers up to 250 ft-lbs. of nut-busting torque
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
  • 4-Mode DRIVE CONTROLTM provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque.
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
  • Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400
  • Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
  • REDLINK PLUSTM Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • Works in up to to 69kV environments
