Step Drill Bit Set, High Speed Steel, Black Oxide, 3-Piece
- Mfr # 48-89-9221
- Zoro # G7570071
Key Features
Specifications
Details
- MFR #
- 48-89-9221
- Zoro #
- G7570071
- UPC #
- 045242307746
- Country of Origin
- United States
- Item
- Step Drill Bit Set
- Number of Pieces
- 3
- Cutting Direction
- Right Hand
- Drill Bit Material
- High Speed Steel
- Includes
- 48-89-9201 (1/8 in to 1/2 in), 48-89-9202 (3/16 in to 1/2 in), 48-89-9204 (3/16 in to 7/8 in), Hard Plastic Case
- Shank Type
- Hex
- Number of Flutes
- 2
- Impact Rated
- Not Impact Rated
- Shank Shape
- Three-Flat
- Decimal Equivalent
- 0.125, 0.1563, 0.1875, 0.2188, 0.25, 0.2813, 0.3125, 0.3438, 0.375, 0.4063, 0.4375, 0.4688, 0.5, 0.5625, 0.625, 0.6875, 0.75
- Shop By
- Hot Buys
- Primary Material Application
- Steel, Plastic
- Material - Machining
- High Speed Steel
- Finish - Machining
- Black Oxide
- Measurement System
- Fractional Inch
- Flute Type
- Spiral
- Drill Bit Point Type
- Rapid Strike Tip
- Sub Brand
- Secure Grip(TM)
- Drill Bit Case Type
- Plastic Case
- Number of Drill Bits
- 3
- Shank Type - Machining
- Straight with Three Flats
- Thread Direction
- Right Hand
- For Tool Type
- Rotary Drill
- Step Increments
- 5/32 in, 3/16 in
Dimensions
- Drill Bit Dimension Type
- Fractional Inch
- Bit Length
- 3", 3-1/64", 3-7/64"
- Drill Bit Sizes Included
- 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 9/32 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in, 9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in
- Step Thickness
- 1/8 in, 7/8 in
- Size Range
- 1/8 in to 7/8 in
- Sizes Included
- 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"; 3/16", 1/4", 5/16", 3/8", 7/16", 1/2"; 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8"
- Overall Length
- 7 in
- Number of Hole Sizes
- 31
- Shank Size
- 1/4 in, 3/8 in
- Largest Drill Bit Size
- 7/8 in
- Maximum Hole Size
- 7/8 in
- Smallest Drill Bit Size
- 1/8 in
- Minimum Hole Size
- 1/8 in
- Number Hole Sizes
- 31
- Shank Diameter
- 1/4 in, 3/8 in
- Shank Hex Size
- 1/4 in, 3/8 in
Description

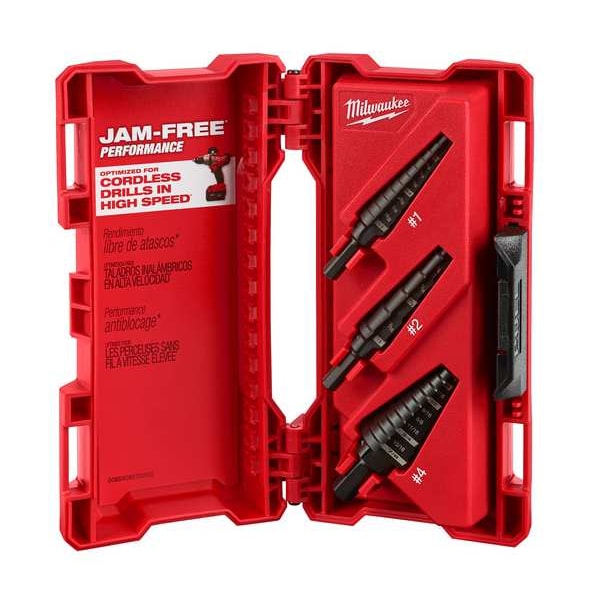

Milwaukee Step Drill Bits with JAM-FREE Performance feature a dual-flute design delivering up to 2X faster hole times, up to 4X longer life and up to 50% more holes per battery charge than competitors. Ideal for drilling small and large-diameter holes in steel and plastic, these bits are Optimized for Cordless Drills in High Speed. The Rapid Strike tip allows for a fast and accurate start that generates less heat, resulting in longer bit tip life. Blackoxide coating also enhances durability, hole quality and bit life. For user convenience and accuracy, each bit has laser-engraved reference marks you can see while drilling. The 3-flat Secure-Grip shank ensures a solid connection with the drill chuck. The Step Drill Bit 3-Piece Set includes bits #1 (48-89-9201), #2 (48-89-9202) and #4 (48-89-9204). Jam-Free Performance in high speed with most professional 18 volt cordless drills with lithium-ion battery technology.
