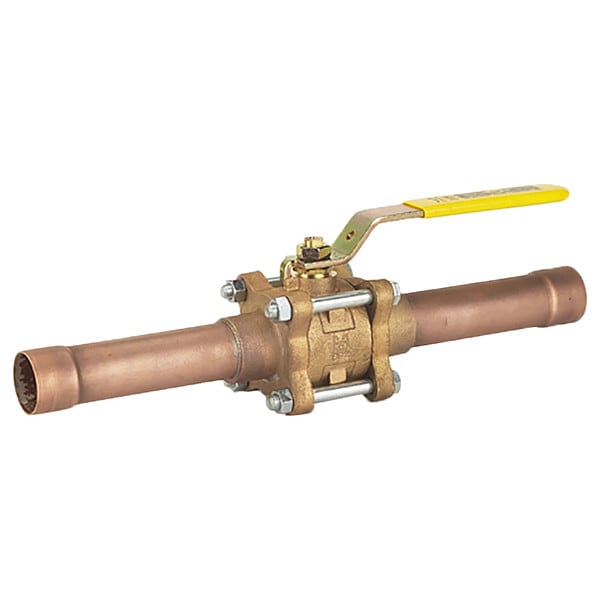

Manual 2-Way Ball Valve, NPT, Bronze

Mfr # 17907
Zoro # G708413505

451.99

Free Shipping & Returns

Key Features

Tube Size

2 in

Ball Material

Chrome-Plated Brass

Standards

NFPA 99C

Connection Type

Tube x Tube

Port

Full

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 17907
Zoro #: G708413505
UPC #: 697988691605
Country of Origin: United States

Dimensions

Tube Size: 2 in
Overall Length: 15.46 in
Pipe Size: 2 in
Nominal Valve Size: 2 in
Connection Size - Side 1: 2 in
Handle Length: 7.13 in
Connection Size - Side 2: 2 in
Wire Rope Length: 15.46 in
Length: 15.46 in

Details

Item: Manual Two-Way Ball Valve
Ball Material: Chrome-Plated Brass
Standards: NFPA 99C
Connection Type: Tube x Tube
Port: Full
Handle Type: Lever
Body Style: 3-piece, 2 way
Seal Material: RPTFE
Max. Steam Pressure: 150 SWP
Body Seal Material: RPTFE
Handle Material: PVC, Zinc-Plated Steel
Max. Pressure: 600 psi
Body Material: Bronze
Valve Structure: 3-Piece
Features: Oxygen Clean
Stem Material: Brass
Stem Type: Blowout Resistant
Seat Material: RPTFE
Color - Valve Handle: Yellow
Cleaned and Bagged: Valve Cleaned and Bagged
Maximum Pressure - Combustible Gas: Not Rated
Valve Body Style: Straight
Vacuum Service Rating: -29.92 in Hg
For Media: Gas
Coefficient of Volume (Cv): 360
Maximum Pressure - Steam: Not Rated
Connection Gender - Side 2: Male
3-A Standard Compliance: Not Rated
Connection Gender - Side 1: Male
Valve Ways: 2-Way
Connection Type - Side 1: NPT
Operating Temperature - Minimum: -20 Degrees F
Ball Port Style: Full Port
Operating Temperature - Maximum: 400 Degrees F
Handle - Locking: Locking
Maximum Pressure - Operating: 600 psi
Connection Type - Side 2: Tube
Valve Construction: Three-Piece
Valve Series: BA-350-TE

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Gas, Valve Construction Three-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever
