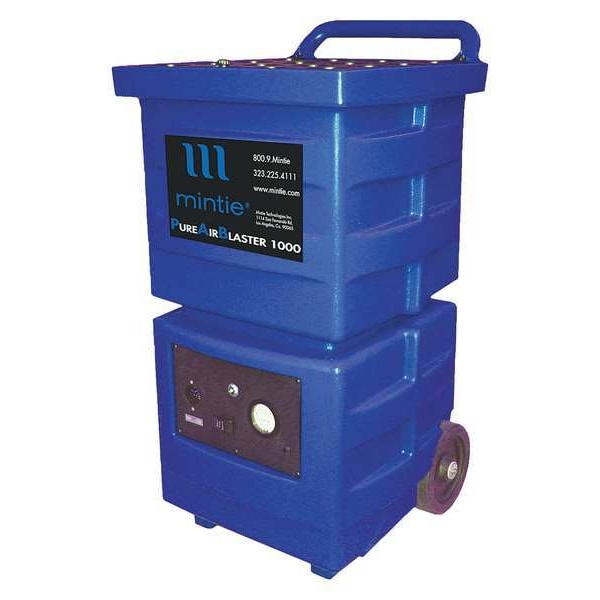

Mintie Technologies Negative Air Machine, 3/4HP, G.P. Filter PAB1K-GP3 - main

Negative Air Machine, 3/4HP, G.P. Filter

  • Mfr # PAB1K-GP3

  • Zoro # G6067494

product price: $1,612.99
/ea
Free Shipping & Returns

Key Features

Width
23 in
Length
20 in
Height
40 in
Voltage
115V AC
Includes
(1) Stage, (1) Prefilter (30RV42), (1) Stage, (2) Ring Filter (30RV43), (1) General Purpose 5 Micron Bag Filter Kit (30RV40)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PAB1K-GP3
Zoro #
G6067494
UPC #
-
Country of Origin
United States

Dimensions

Width
23 in
Length
20 in
Height
40 in
Prefilter Size
16 in x 16 in x 1/2 in
Main Filter Size
16 in x 16 in
Discharge Dia.
10 in
Overall Depth
20 in
Caster Size
8 in
Overall Width
23 in
Manufacturer Warranty Length
1 yr
Outlet Diameter
10 in
Overall Height
40 in
Power Cord Length
25 ft
For Outlet Duct Diameter
10 in

Details

Voltage
115V AC
Includes
(1) Stage, (1) Prefilter (30RV42), (1) Stage, (2) Ring Filter (30RV43), (1) General Purpose 5 Micron Bag Filter Kit (30RV40)
Filtration
General Purpose
Decibels
40
HP
3/4 hp
Amps
10 A
Motor
3 Speed Thermally Protected
Net Weight
94 lb
Air Flow with HEPA Filter
1000 cfm
Item
Air Scrubber
Air Inlet
10 in
Prefilter Type
Polypad
Air Flow without HEPA Filter
1,600 cfm
Construction
Seamless Roto. Molded Polyethylene
Vacuum Gauge
Yes
Mobility
Wheels
Amperage
10 A
Motor Horsepower
3/4 hp
Weight
94 lb
Number of Cleaning Stages
3
Filters Out
Fumes, Ammonia, Bacteria, Aerosols, Formaldehyde, Hexane, Mercury Vapor, Mold, Natural Gas, Odors, Ozone, Viruses
Number of Speeds
3
Includes Mounting Hardware
Mounting Hardware Included
Filter Efficiency
95 %
Air Cleaning Method
Negative Air Pressure, Particulate Filtration
Phase
Single
Filters Included
Carbon (Pre-Filter), HEPA (Primary), Poly (Pre-Filter), Ring (Secondary)
Frequency
60 Hz
Filters Down To
5 micron
Filter Change Reminder
None
Noise Level
40 dB
Housing Color
Blue
Air Flow
350 cfm, 500 cfm, 1,000 cfm
Control Type
On/Off Switch
Audible Visual Alarms
No Alarm
Housing Material
Polyethylene
Air Cleaning Technology
Particulate Filtration
Maximum Air Flow
1,000 cfm
Includes Filter
Air Filter Included
Air Intake Location
Top
Maximum Noise Level @ 1026 cfm @ 0.4 in SP
54 dB
Wattage
575 W
Overload Protection
Overload Protection Included
Auto-Shutoff
Manual
NEMA Plug Rating
5-15P
Control Method
Built-In
Includes Vacuum Gauge
Vacuum Gauge Included
Air Quality Sensor
Air Quality Sensor Not Included
Primary Filter Type
Pleated

Description

Air Scrubber, 3 Speed Thermally Protected Motor, HP 3/4 hp, Voltage 115V AC, 10 A Amps, Height 40 in, Length 20 in, Width 23 in, Air Flow with HEPA Filter 1000 cfm, Air Flow without HEPA Filter 1,600 cfm, Filtration General Purpose, Main Filter Size 16 in x 16 in, Prefilter Size 16 in x 16 in x 1/2 in, Prefilter Type Polypad, Discharge Dia. 10 in, Air Inlet 10 in, Decibels 40, Vacuum Gauge Yes, Construction Seamless Roto. Molded Polyethylene, Net Weight 94 lb
