  11. Depth Gage, 2-1/2" Base L, 0.001" Res.

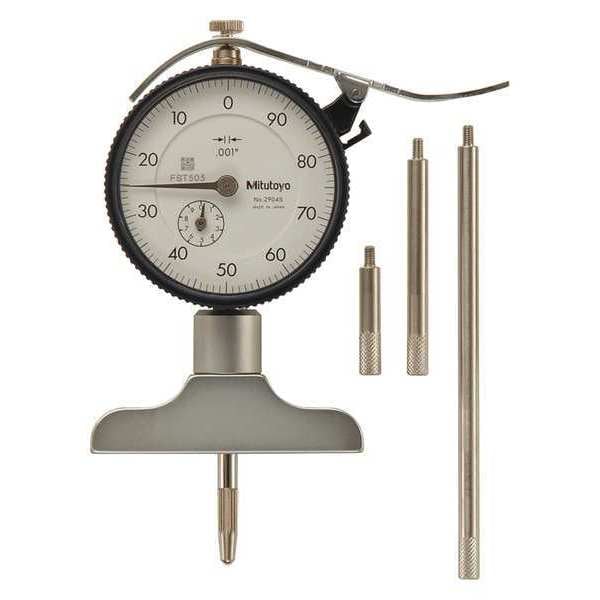

Mitutoyo Depth Gage, 2-1/2" Base L, 0.001" Res. 7217A - main

Depth Gage, 2-1/2" Base L, 0.001" Res.

  • Mfr # 7217A

  • Zoro # G0986181

product price: $443.99
/ea
Free Shipping & Returns

Key Features

SPC Output
No
Base Style
Full
Range
0 in to 8 in
Base Length
2.5 in
Number of Measuring Rods
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7217A
Zoro #
G0986181
UPC #
603908422280
Country of Origin
Japan

Dimensions

Base Length
2.5 in
Rod Lengths Included
0.5 in, 1 in, 2 in, 4 in
Depth Gauge Type
Interchangeable-Rod Depth Gauge
Dimension Type
Inch
Blade Width
104 mm
Stroke Length
1 in

Details

Item
Dial Depth Gauge
SPC Output
No
Base Style
Full
Range
0 in to 8 in
Number of Measuring Rods
4
Long Form Calibration Certificate
No
Features
1 1/2" IPS, Slip Union Connectorson both Inlet and Discharge Ports
Includes
45 Degrees Beveled Edge
Dial Position
Top
Contact Point Material
Carbide
Dial Color
White
Graduations
0.001 in
Blade Material
Stainless Steel
Maximum Measurement - Inch
8 in
Operation Type
Mechanical
Blade Tip Shape
Ball
Dial Reading
0-100
Minimum Measurement - Inch
0 in
Accuracy
+/-0.002 in
Contact Point Shape
Ball
Included Certification
No
Inches Measured - Minimum
0 in
Inches Measured - Maximum
8 in
Range per Revolution
1 in

Description

Dial Depth Gauge, Range 0 in to 8 in, Graduations 0.001 in, Accuracy +/-0.002 in, Long Form Calibration Certificate No, Base Length 2.5 in, Base Style Full, Dial Position Top, Dimension Type Inch, Included Certification No, Number of Measuring Rods 4, Operation Type Mechanical, Range per Revolution 1 in, Blade Material Stainless Steel, Blade Width 104 mm, Contact Point Material Carbide, Contact Point Shape Ball, Depth Gauge Type Interchangeable-Rod Depth Gauge, Dial Color White
