Shop MITUTOYO

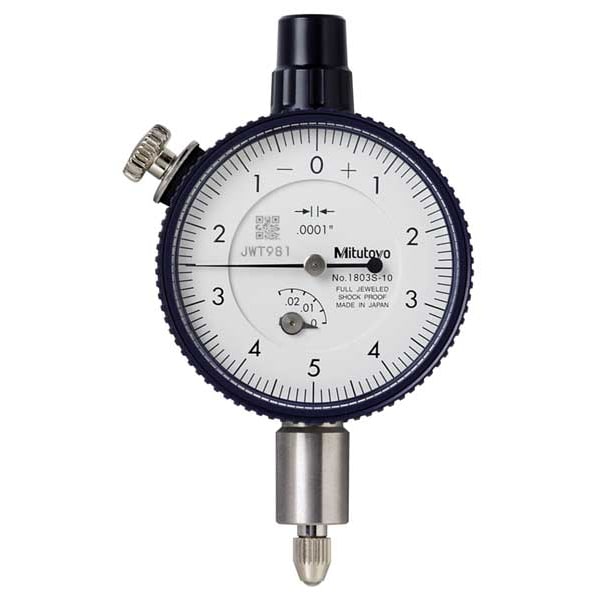

Dial Indicator, 0 to 0.025 In, 0-5-0

  • Mfr # 1803A-10

  • Zoro # G1169025

product price:
$
209.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0001 in
Range
0 in to 0.025 in
Features
Stem Dia. 3/8" #4-48 UNF Thread; With Lug Back; Shockproof Type
Accuracy
0.0001 in
Includes
Lug Back
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1803A-10
Zoro #
G1169025
UPC #
603908505655
Country of Origin
Japan

Dimensions

Contact Point Dia.
3 mm
Dial Size
40 mm
Stem Dia.
0.375 in
Stem Thread Size
M2.5 x 0.45
Dimension Type
Inch
Contact Point Diameter
3 mm
Stem Diameter
0.375 in

Details

Graduations
0.0001 in
Range
0 in to 0.025 in
Features
Stem Dia. 3/8" #4-48 UNF Thread; With Lug Back; Shockproof Type
Accuracy
0.0001 in
Includes
Lug Back
Reading
Balanced
Bearing Type
Jeweled
Series
1
Dial Reading
0-5-0
AGD No.
AGD 1
Item
Dial Indicator - Lug Back
Back Type
Lug
Standards
AGD, ANSI
Dial Color
White
Range per Revolution
0.01 in
Bezel Lock
No
Long Form Calibration Certificate
No
Number of Indicators
1
Includes Case
No
Minimum Measurement - Inch
0 in
Max. Measuring Force
1.4 N
Maximum Measurement - Inch
0.025 in
Included Certification
Certificate of Inspection
Shock Resistant
Yes
Operation Type
Plunger
Non-Magnetic
Yes
AGD Number
AGD 1
Contact Point Shape
Curved
Case Type
Box
Product Type
Dial Indicator - Lug Back
Maximum Measuring Force
1.4 N
Inches Measured - Minimum
0 in
Inches Measured - Maximum
0.025 in

Description

Dial Indicator - Lug Back, Range 0 in to 0.025 in, Graduations 0.0001 in, Accuracy 0.0001 in, Long Form Calibration Certificate No, AGD Number AGD 1, Back Type Lug, Dial Color White, Dial Reading 0-5-0, Dial Size 40 mm, Dimension Type Inch, Included Certification Certificate of Inspection, Maximum Measurement - Inch 0.025 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Plunger, Range per Revolution 0.01 in, Reading Balanced, Bearing Type Jeweled, Bezel Lock No
