  13. Dial Test Indicator, Hori, 0 to 0.030 In

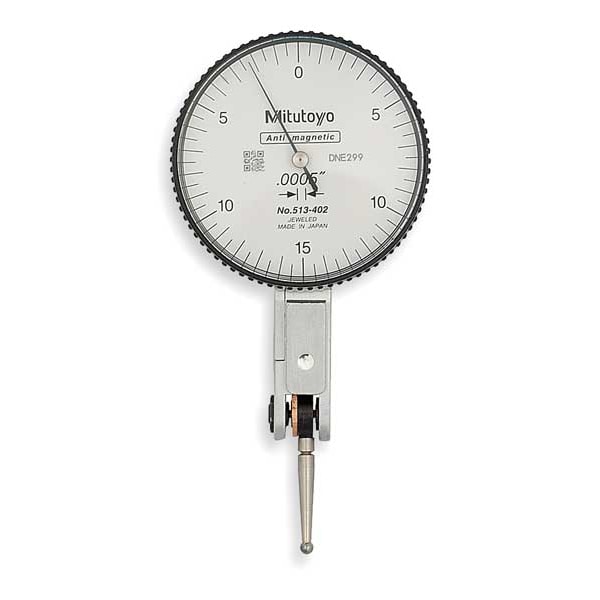

Mitutoyo Dial Test Indicator, Hori, 0 to 0.030 In 513-402-10E - main

Dial Test Indicator, Hori, 0 to 0.030 In

  • Mfr # 513-402-10E

  • Zoro # G1545677

product price: $154.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.001 in
Range
0 in to 0.03 in
Features
Jeweled bearings, Glare-free crystal with scratch-resistant coating, Water and dust resistant, No-clutch structure
Accuracy
+/- 0.0005 in
Includes
(2) Dovetails
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
513-402-10E
Zoro #
G1545677
UPC #
603908225201
Country of Origin
Japan

Dimensions

Dial Size
1.5 in
Contact Point Dia.
0.08 in
Stylus Diameter
0.08 in
Stylus Length
0.5 in
Dimension Type
Inch
Stem Thread Size
M6
Contact Point Diameter
0.08 in

Details

Graduations
0.001 in
Range
0 in to 0.03 in
Features
Jeweled bearings, Glare-free crystal with scratch-resistant coating, Water and dust resistant, No-clutch structure
Accuracy
+/- 0.0005 in
Includes
(2) Dovetails
Indicator Style
Horizontal
Contact Point Style
Carbide
Reading
Balanced
Bearing Type
Jeweled
Series
Mitutoyo 513
Dial Reading
0-15-0
Range per Revolution
0.015 in
Dial Color
White
Item
Horizontal Dial Test Indicator
Long Form Calibration Certificate
No
Case Type
Case
Included Certification
Short Form Certificate of Inspection with NIST Traceability
Includes Dovetail Mount Attachments
No
Max. Measuring Force
0.3 N
Repeatability
+/-0.0002 in
Operation Type
Lever-Style
Contact Point Shape
Ball
Non-Conductive Tip
No
Minimum Measurement - Inch
0 in
Mounting Style
Dovetail
Contact Point Material
Carbide
Shock Resistant
Yes
Swivel Angle
210 Degrees
Non-Magnetic Tip
Yes
Hysteresis
5 micronm
Maximum Measurement - Inch
0.06 in
Test Indicator Style
Horizontal
Includes Case
Yes
Number of Indicators
1
Product Type
Horizontal Dial Test Indicator
Inches Measured - Minimum
0 in
Inches Measured - Maximum
0.06 in
Maximum Measuring Force
0.3 N

Description

If you need to measure very small distances, the Mitutoyo 513-402-10E Dial Test Indicator is the tool for you. It has a range of 0 in to 0.06 in and can give you an accuracy of +/-0.0005 in. The 1.5" dial face features white markings on a gray background for easy reading. With its lever style operation, this indicator allows for quick zeroing and fine adjustments. Its compact size makes it perfect for working in tight spaces or behind equipment where larger indicators would be impractical or impossible to use. This Mitutoyo Dial Test Indicator is a high quality tool that will meet your demands with ease.
