This item is Discontinued.

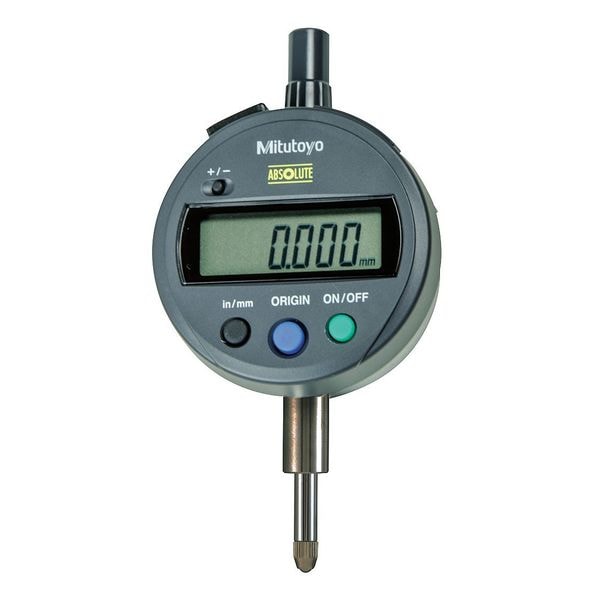

Mitutoyo Digimatic Indicator Ids 543-790B

Digimatic Indicator Ids (Discontinued)

  • Mfr # 543-790B
  • Zoro # G0973135
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
543-790B
Zoro #
G0973135
UPC #
-
Country of Origin
Japan

Dimensions

Contact Point Dia.
0.38 in
Dimension Type
Metric
Dial Size
66 mm W x 83.2 mm H
Stem Dia.
0.375 in
Stem Thread Size
#4-48 UNF
Battery Size
SR44
Stem Diameter
0.375 in
Contact Point Diameter
0.38 in

Details

Item
Digimatic Indicator
Series
Series 543
Range
0 mm to 12.7 mm
Resolution
0.001 mm, 0.00005 in
Accuracy
0.0001 in
Long Form Calibration Certificate
No
Number of Indicators
1
Shock Resistant
No
Operation Type
Plunger
Minimum Measurement - mm
0 mm
Maximum Measurement - mm
12.7 mm
IP Rating
IP42
Back Type
Flat Back
SPC Output
Yes
Bezel Type
Yes
Variable Resolution
No
Standards
C0920, DIN40050 Part 1, IEC 60529, JIS D0207
Case Type
Case
Compatible Data Output Cable
905338
Included Certification
Certificate of Inspection
Includes Battery
Yes
Display Type
LCD
Contact Point Shape
Radius
Minimum Measurement - Inch
0 in
Max. Measuring Force
1.5 N
Non-Magnetic
No
Includes Case
Yes
Data Output Type
Cabled
Millimeters Measured - Maximum
12.7 mm
Bezel Lock
Yes
Body Color
Black
Maximum Measuring Force
1.5 N
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
0 in

Description

Digimatic Indicator, Series Series 543, Resolution 0.001 mm, 0.00005 in, Accuracy 0.0001 in, Range 0 mm to 12.7 mm, Long Form Calibration Certificate No
