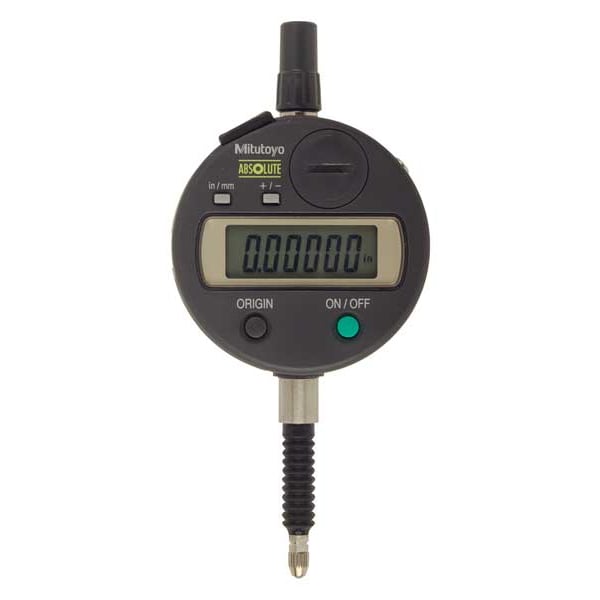

Mitutoyo Digimatic Indicator, NIST, Battery 543-796-12CAL - main

Digimatic Indicator, NIST, Battery

  • Mfr # 543-796-12CAL

  • Zoro # G5898977

product price: $479.99
/ea
Free Shipping & Returns

Key Features

Series
Series 543
Range
0 in to 0.5 in
Resolution
0.001 mm, 0.00005 in
Accuracy
+/- 0.0001 in
Long Form Calibration Certificate
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
543-796-12CAL
Zoro #
G5898977
UPC #
-
Country of Origin
Japan

Dimensions

Dial Size
66 mm
Stem Dia.
0.375 in
Dimension Type
Inch/Metric
Stem Thread Size
#4-48 UNF
Contact Point Dia.
0.38 in
Battery Size
SR44
Contact Point Diameter
0.38 in
Stem Diameter
0.375 in

Details

Item
Digital Indicator
Series
Series 543
Range
0 in to 0.5 in
Resolution
0.001 mm, 0.00005 in
Accuracy
+/- 0.0001 in
Long Form Calibration Certificate
Yes
Includes
Certificate Of Calibration Traceable To NIST, Battery
Features
With SPC Data Output
Maximum Measurement - Inch
0.5 in
Display Type
LCD
Back Type
Flat
SPC Output
Yes
Includes Battery
Yes
IP Rating
IP42
Max. Measuring Force
1.5 N
Minimum Measurement - mm
0 mm
Minimum Measurement - Inch
0 in
Maximum Measurement - mm
12.7 mm
Number of Indicators
1
Contact Point Shape
Radius
Operation Type
Plunger
Standards
C0920, DIN40050 Part 1, IEC 60529, JIS D0207
Shock Resistant
No
Bezel Type
Yes
Non-Magnetic
No
Includes Case
Yes
Case Type
Case
Included Certification
Calibration Certificate, Certificate of Inspection
Compatible Data Output Cable
905338
Variable Resolution
No
Data Output Type
Cabled
Millimeters Measured - Maximum
12.7 mm
Millimeters Measured - Minimum
0 mm
Bezel Lock
Yes
Inches Measured - Minimum
0 in
Body Color
Black
Inches Measured - Maximum
0.5 in
Maximum Measuring Force
1.5 N

Description

Digital Indicator, Series Series 543, Resolution 0.001 mm, 0.00005 in, Accuracy +/- 0.0001 in, Range 0 in to 0.5 in, Long Form Calibration Certificate Yes, Features With SPC Data Output, Includes Certificate Of Calibration Traceable To NIST, Battery
