  13. Digital Height Gage, LCD, Range 0 to 12 in

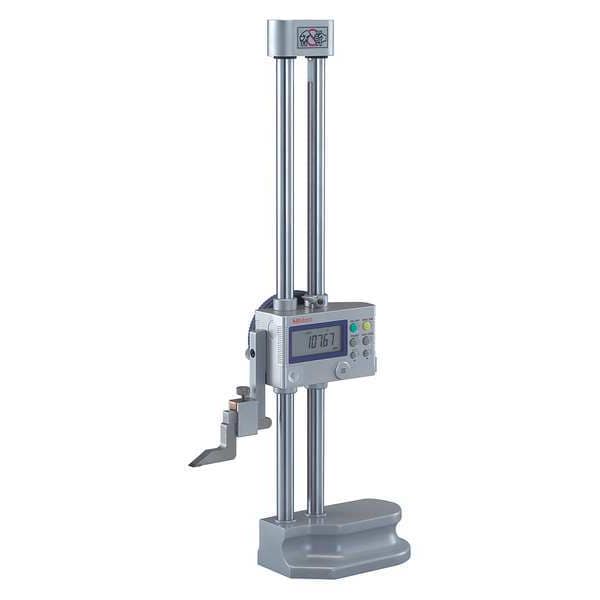

Mitutoyo Digital Height Gage, LCD, Range 0 to 12 in 192-630-10 - main

Digital Height Gage, LCD, Range 0 to 12 in

  • Mfr # 192-630-10

  • Zoro # G8907762

product price: $1,789.99
/ea
Free Shipping & Returns

Key Features

Type
Electronic Digital
Mechanism
Coarse and Fine Adjustment
Construction
Steel
Display
LCD
Resolution
0.0005 in; 0.01 mm, 0.0002 in; 0.005 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
192-630-10
Zoro #
G8907762
UPC #
-
Country of Origin
Japan

Dimensions

Dimension Type
Inch/Metric
Height Measurement Type
1D

Details

Item
Digital Height Gauge
Type
Electronic Digital
Mechanism
Coarse and Fine Adjustment
Construction
Steel
Display
LCD
Range
0 in to 12 in/0 to 300 mm
Resolution
0.0005 in; 0.01 mm, 0.0002 in; 0.005 mm
Battery
SR44
Screw
Clamp Lever Locks Scriber at any Position
Features
Switchable Resolution (0.0002"/0.005mm or 0.0005"/0.01mm)
Accuracy
+/-0.001 in
Counter Type
Electronic Digital
Base
Cast Iron
Includes
Carbide Tipped Scriber
Minimum Measurement - Inch
0 in
Compatible Data Output Cable
Mfr. No. 905338, Mfr. No. 905409, Mfr. No. 905691, Mfr. No. 905692
Number of Measurements
Zero-setting, ABS/INC switching, Two presets, Probe tip diameter compensation, -/+ switching, Power ON/OFF, Data hold, With Output
Includes Fine Adjustment
Yes
Includes Display
Yes
Long Form Calibration Certificate
No
Maximum Measurement - Inch
12 in
Power Source
SR44 Battery
Maximum Measurement - mm
300 mm
SPC Output
Yes
Minimum Measurement - mm
0 mm
Included Locking Mechanism
Clamp Lever
Functions
Data Hold, Inch/Metric Conversion, Power On/Off, Two Preset, Probe Tip Diameter Compensation -/+ Switching, Zero Set
Series
192
Travel Type
Manual
Base Material
Cast Iron
Display Type
LCD
Beam Style
Double-Pole
Operation Type
Digital
Includes Battery
Yes
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
300 mm
Inches Measured - Maximum
12 in
Inches Measured - Minimum
0 in
Included Certification
Certificate of Inspection
IP Rating
Not Rated

Description

When you need to measure height, the Mitutoyo 192-630-10 Digital Height Gage is the tool for the job. The electronic digital height gauge features a range of 0 in to 12 in/0 mm to 300 mm. Switchable resolution of 0.0002"/0.005mm or 0.0005"/0.01mm lets you choose between two modes depending on your needs and preferences. This digital height gauge has an ABS/INC switching function which allows you to switch between measurements in inches and millimeters at any time during operation with just one touch of a button on the device itself or via an output cable connected to another device such as a printer or computer. A probe tip diameter compensation feature helps you avoid measuring errors caused by using different types of probes on one instrument, while it./+ switching function allows for easy conversion from inch measurements into metric ones and vice versa. The Mitutoyo 192-630-10 Digital Height Gauge is all you need when it comes to measuring heights accurately and easily.
