This item is Discontinued.

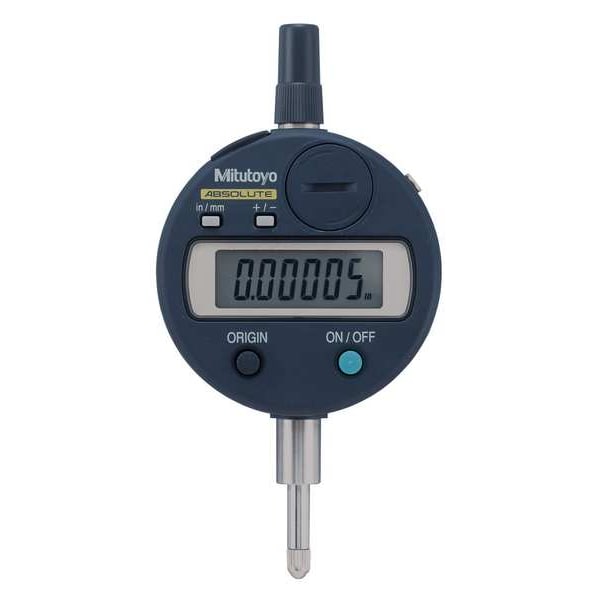

Mitutoyo Digital Indicator, 0.50 In Range, Lug Back 543-792

Digital Indicator, 0.50 In Range, Lug Back (Discontinued)

  • Mfr # 543-792
  • Zoro # G3536775
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
543-792
Zoro #
G3536775
UPC #
603908325772
Country of Origin
Japan

Dimensions

Dial Size
66 mm W x 83.2 mm H
Dimension Type
Inch/Metric
Stem Dia.
0.375 in
Stem Thread Size
#4-48 UNF
Battery Size
SR44
Contact Point Dia.
0.38 in

Details

Item
Digital Indicator
Series
Series 543
Range
0 in to 0.5 in
Resolution
0.001 mm, 0.00005 in
Accuracy
+/-0.0001 in
Long Form Calibration Certificate
No
Features
3/8 in Stem, Counting Direction Change, Data Output, Lug Back, On/Off, Origin Set, Zero Set
SPC Output
Yes
Back Type
Flat Back
IP Rating
IP42
Maximum Measurement - mm
12.7 mm
Maximum Measurement - Inch
0.5 in
Number of Indicators
1
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Display Type
LCD
Max. Measuring Force
2 N
Minimum Measurement - mm
0 mm
Included Certification
Certificate of Inspection
Operation Type
Plunger
Bezel Type
Yes
Includes Case
Yes
Case Type
Case
Shock Resistant
No
Contact Point Shape
Radius
Compatible Data Output Cable
905338
Non-Magnetic
No
Variable Resolution
No
Standards
C0920, DIN40050 Part 1, IEC 60529, JIS D0207
Data Output Type
Cable

Description

The MITUTOYO 543-792 Digital Indicator is the ideal tool for ensuring precise measurements. It features a 0.5 in range and provides you with high accuracy readings. With its 3/8 in stem, the digital indicator offers versatility when it comes to positioning it on your workbench or other surface. You can also change the counting direction of this indicator by simply rotating the dial, making it easy to use regardless of which hand you are using. The data output allows you to connect the device to your computer or printer for easy printing of measurement results. This lug back digital indicator has an on/off switch and origin set functions that allow you to keep track of previous measurements easily. The MITUTOYO Lug Back Digital Indicator is one of the most reliable tools you will ever find in your workshop or lab.
