This item is Discontinued.

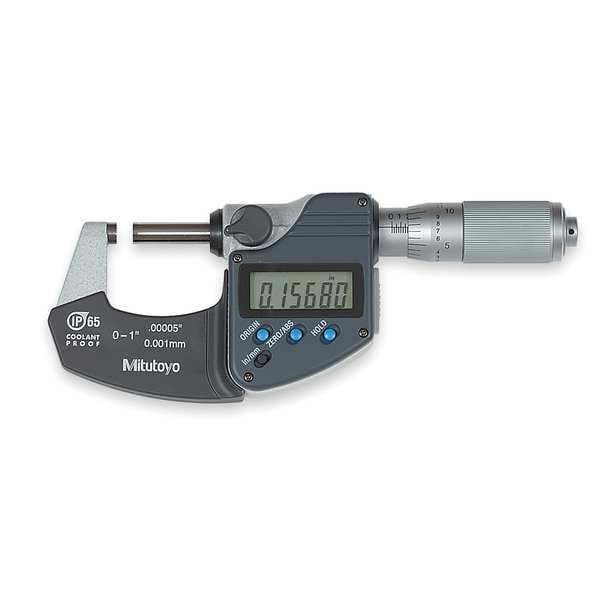

Mitutoyo Digital Micrometer, 0 to 1In, SPC, Friction 293-335-30

Digital Micrometer, 0 to 1In, SPC, Friction (Discontinued)

  • Mfr # 293-335-30
  • Zoro # G1195275
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
293-335-30
Zoro #
G1195275
UPC #
-
Country of Origin
Japan

Dimensions

Spindle Diameter
6.35 mm
Battery Size
SR44
Dimension Type
Inch/Metric
Spindle Diameter1
6.35 mm

Details

Item
Coolant-proof Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Features
IP65 Protection Level, Enabling Use in Environments Exposed to Cutting Oil, Measurement Data Output Function is Available with A Water-Resistant Connection Cable, Auto Power ON/OFF Function, A Nonslip Surface is Employed for The Frame Cover and Surface Panel to Achieve Stable Handheld Measurement
Includes
(1) Battery (SR44), (1) Certificate of Inspection Key, (1)Fitted Plastic Case
Spindle
Flat
Anvil
Flat
Thimble
Ratchet
SPC Output
Yes
Long Form Calibration Certificate
Yes
Anvil Material
Carbide
IP Rating
IP65
Spindle Material
Carbide Tipped
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No.05CZA663
Minimum Measurement - mm
0 mm
Case Type
Plastic
Thimble Type
Friction
Functions
Automatic Power On/Off, Data Hold, Origin-Set, Zero-Setting
Coolant Resistant
Yes
Includes Battery
Yes
Case Included
Yes
Anvil Shape
Flat
Display Type
LCD
Included Certification
Certificate of Inspection
Operation Type
Digital
Maximum Measurement - mm
25.4 mm
Accuracy
+/- 0.00005 in
Maximum Measurement - Inch
1 in
Spindle Shape
Flat
Minimum Measurement - Inch
0 in
Rotating Spindle
Yes
Inches Measured - Minimum
0 in
Millimeters Measured - Maximum
25.4 mm
Frame Material
Iron
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
1 in

Description

The MITUTOYO 293-335-30 Digital Micrometer is a must-have for those looking to get accurate measurements. It features a range of 0 to 1"/0 to 25.4mm, as well as an accuracy of +/-0.00005 in.. This digital micrometer has a resolution of 0.00005"/0.001mm and a spindle that is flat with a diameter of 0.375". The device also comes with a ratchet thimble and friction clutch, which allows you to adjust the measurement without having to reset the zero point each time you make an adjustment. In addition, it has an SPC output port that can be connected directly to your PC or printer for data storage and printing capabilities on various applications such as CNC machines and lathes. If you are looking for an easy way to measure dimensions accurately, then the MITUTOYO 293-335-30 Digital Micrometer is definitely what you need.
