  15. Digital Micrometer, 2 to 3In, 0.00005, Ratchet

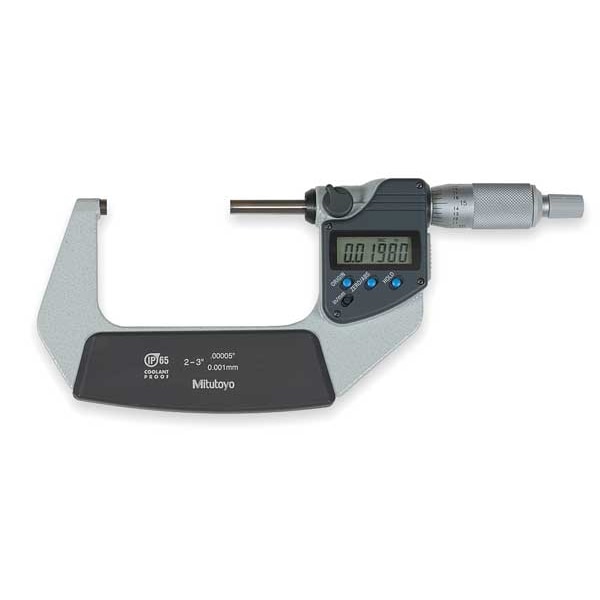

Mitutoyo Digital Micrometer, 2 to 3In, 0.00005, Ratchet 293-332-32 - main

Digital Micrometer, 2 to 3In, 0.00005, Ratchet

  • Mfr # 293-332-32

  • Zoro # G0500552

product price: $431.77
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
2 to 3"/50.8 to 76.2mm
Features
IP65 Protection Level, Enabling Use in Environments Exposed to Cutting Oil, Measurement Data Output Function is Available with A Water-Resistant Connection Cable, Auto Power ON/OFF Function, A Nonslip Surface is Employed for The Frame Cover and Surface Panel to Achieve Stable Handheld Measurement
Includes
(1) Battery (SR44), (1) Standard Bar, (1) Fitted Plastic Case
Spindle
Flat
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
293-332-32
Zoro #
G0500552
UPC #
603908358732
Country of Origin
Japan

Dimensions

Battery Size
SR44
Spindle Diameter
6.35 mm
Dimension Type
Inch/Metric
Spindle Diameter1
6.35 mm

Details

Item
Coolant-proof Micrometer
Resolution
0.00005"/0.001mm
Range
2 to 3"/50.8 to 76.2mm
Features
IP65 Protection Level, Enabling Use in Environments Exposed to Cutting Oil, Measurement Data Output Function is Available with A Water-Resistant Connection Cable, Auto Power ON/OFF Function, A Nonslip Surface is Employed for The Frame Cover and Surface Panel to Achieve Stable Handheld Measurement
Includes
(1) Battery (SR44), (1) Standard Bar, (1) Fitted Plastic Case
Spindle
Flat
Anvil
Flat
Thimble
Ratchet
SPC Output
Yes
IP Rating
IP65
Long Form Calibration Certificate
No
Spindle Material
Carbide Tipped
Anvil Material
Carbide
Anvil Shape
Flat
Case Type
Plastic
Minimum Measurement - mm
50.8 mm
Display Type
LCD
Functions
Automatic Power On/Off, Data Hold, Origin-Set, Zero-Setting
Spindle Shape
Flat
Includes Battery
Yes
Case Included
Yes
Operation Type
Digital
Accuracy
+/- 0.00005 in
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No.05CZA663
Thimble Type
Ratchet
Maximum Measurement - mm
76.2 mm
Included Certification
Certificate of Inspection
Coolant Resistant
Yes
Minimum Measurement - Inch
2 in
Maximum Measurement - Inch
3 in
Millimeters Measured - Maximum
25.4 mm
Inches Measured - Maximum
3 in
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
2 in
Rotating Spindle
Yes
Frame Material
Iron

Description

The MITUTOYO 293-332-30 Digital Micrometer is the ideal tool for measuring the accuracy of workpieces in a variety of industries. With an IP65 protection level, this micrometer is designed to be used in environments exposed to cutting oil. The measurement data output function allows you to easily record measurements with a water resistant connection cable. You can turn on and off the auto power ON/OFF function by simply pressing a button on the side of the micrometer. The nonslip surface employed on the frame cover and surface panel ensures that you have a stable handheld measurement experience. Equip yourself with this reliable MITUTOYO 293-332-30 Digital Micrometer for your next project.
