  15. Digital Micrometer, Blade, 0 to 1", SPC

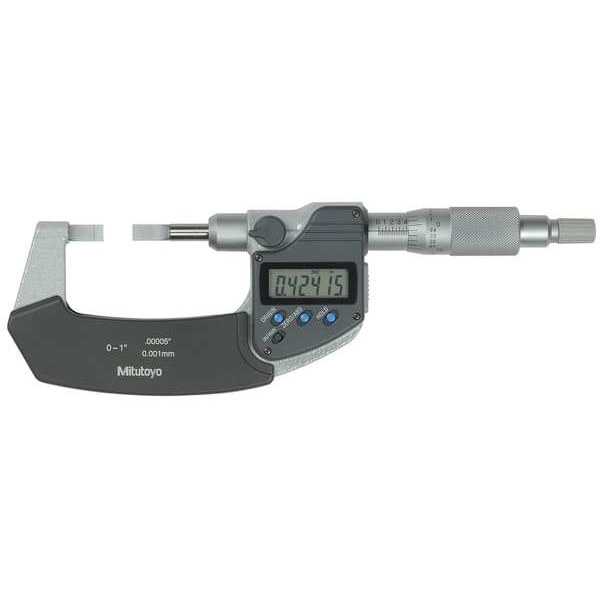

Mitutoyo Digital Micrometer, Blade, 0 to 1", SPC 422-360-32 - main

Digital Micrometer, Blade, 0 to 1", SPC

  • Mfr # 422-360-32

  • Zoro # G3549567

product price: $1,049.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
The Anvil and the Spindle have a Blade for Measuring the Groove Diameter of Shafts, Keyways and Other Hard-to-Reach Areas, Ratchet Stop for Constant Force, Non-Slip Grip Finish
Includes
(1) Battery (SR44), (1) Standard Bar, (1) Fitted Plastic Case
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
422-360-32
Zoro #
G3549567
UPC #
603908389200
Country of Origin
Japan

Dimensions

Spindle Size
0.016 in x 0.256 in
Anvil Size
0.016 in x 0.256 in
Spindle Diameter
18 mm
Battery Size
SR44
Dimension Type
Inch/Metric
Spindle Diameter1
18 mm

Details

Item
Blade Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
The Anvil and the Spindle have a Blade for Measuring the Groove Diameter of Shafts, Keyways and Other Hard-to-Reach Areas, Ratchet Stop for Constant Force, Non-Slip Grip Finish
Includes
(1) Battery (SR44), (1) Standard Bar, (1) Fitted Plastic Case
Spindle
Blade, Non-Rotating
Anvil
Blade
Thimble
Ratchet
Lock Nut Type
Lever
Spindle Material
Steel
Certification
Certificate of Inspection
Anvil Material
Steel
SPC Output
Yes
Rotating Spindle (Yes/No)
No
IP Rating
IP54
Long Form Calibration Certificate
No
Maximum Measurement - Inch
1 in
Display Type
LCD
Thimble Type
Ratchet
Case Included
Yes
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Coolant Resistant
No
Case Type
Case
Data Output Type
Cabled
Accuracy
+/-0.00015 in
Anvil Shape
Blade
Operation Type
Digital
Maximum Measurement - mm
25.4 mm
Included Certification
Certificate of Inspection
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No. 05CZA663, Mfr. No. 937387, Mfr. No. 965013
Minimum Measurement - mm
0 mm
Inches Measured - Minimum
0 in
Spindle Shape
Blade
Rotating Spindle
No
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
25.4 mm
Inches Measured - Maximum
1 in

Description

Digital Blade Micrometer, Range 0 in to 1 in, 0 to 25.4 mm, Resolution 0.00005 in, Accuracy +/-0.00015 in, IP Rating IP54, SPC Output Yes, Data Output Type Cabled, Long Form Calibration Certificate No, Anvil Shape Blade, Anvil Size 0.016 in x 0.256 in, Coolant Resistant No, Dimension Type Inch/Metric, Operation Type Digital, Thimble Type Ratchet, Anvil Material Steel, Battery Size SR44, Case Included Yes, Case Type Case
