Mitutoyo

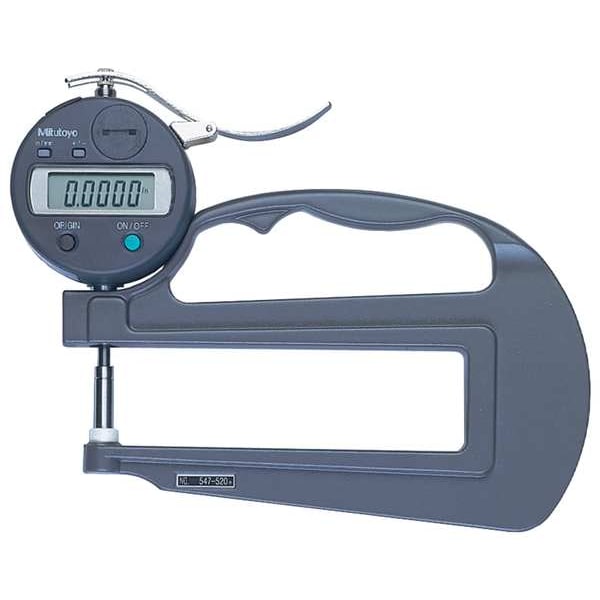

Digital Thickness Gage, 0 to 0.470In

product price: $419.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Flat Contact Dia. 0.394 in
  • Resolution (In.) 0.00050
  • Throat Depth 4.7 in
  • Accuracy +/-0.001 in
  • Long Form Calibration Certificate Yes
See all product information

Product Information

Dimensions

Flat Contact Dia. 0.394 in
Throat Depth 4.7 in
Battery Size Silver Oxide Cell SR44
Dimension Type Inch/Metric
Anvil Diameter 0.394 in

Details

Resolution (In.) 0.00050
Item Digital Thickness Gauge
Accuracy +/-0.001 in
Long Form Calibration Certificate Yes
Includes Certificate of Calibration
Features IDS Digimatic Indicator w/SPC Output, CERA Ceramic Anvils
Range (In.) 0 to 0.470
Contact Type Flat CERA
Range (mm) 0-12mm
Resolution (mm) 0.01
Resolution 0.0005 in, 0.01 mm
Data Output Type Cable
Grip Style Convenient Grip
Maximum Measuring Force 1.5 N
Range 0 in to 1/2 in, 0 mm to 12 mm
Minimum Measurement - Inch 0.0005 in
Operation Type Digital
Included Certification Certificate of Calibration
Anvil Shape Flat
Contact Material Ceramic
Minimum Measurement - mm 0.01 mm
Compatible SPC Cable Mfr. No. 905338
Display Type LCD
Maximum Measurement - mm 12 mm
SPC Output Yes
Maximum Measurement - Inch 0.4700 in
Includes Battery Yes
Actuation Type Trigger
Range - Inch 0 to 0.470

Description

Digital Thickness Gauge, Resolution 0.0005 in, 0.01 mm, Accuracy +/-0.001 in, SPC Output Yes, Data Output Type Cable, Long Form Calibration Certificate Yes, Actuation Type Trigger, Anvil Shape Flat, Contact Material Ceramic, Dimension Type Inch/Metric, Maximum Measurement - Inch 0.4700 in, Maximum Measurement - mm 12 mm, Minimum Measurement - Inch 0.0005 in, Minimum Measurement - mm 0.01 mm, Operation Type Digital, Range 0 in to 1/2 in, 0 mm to 12 mm, Throat Depth 4.7 in, Anvil Diameter 0.394 in
