Shop MITUTOYO

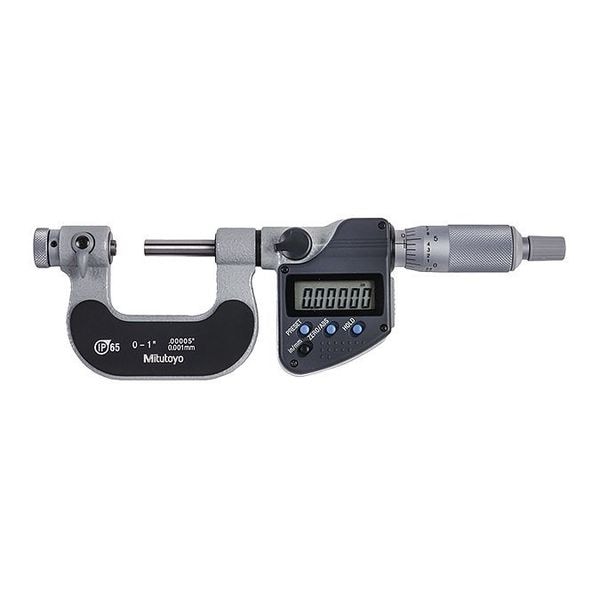

Electronic Digital Micrometer, Anvil Flat

  • Mfr # 326-351-32

  • Zoro # G0581581

product price:
$
851.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Interchangeable Anvils are Available, Ratchet Stop for Constant Force, Non-slip Grip Finish
Includes
(1) Battery (SR44), (1) SPC Output, (1) Standard Bar, (1) Fitted Plastic Case
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
326-351-32
Zoro #
G0581581
UPC #
603908597339
Country of Origin
Japan

Dimensions

Spindle Size
0.250 in
Dimension Type
Inch/Metric
Battery Size
SR44
Spindle Diameter
18 mm
Spindle Diameter1
18 mm

Details

Item
Screw Thread Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Interchangeable Anvils are Available, Ratchet Stop for Constant Force, Non-slip Grip Finish
Includes
(1) Battery (SR44), (1) SPC Output, (1) Standard Bar, (1) Fitted Plastic Case
Spindle
Conical
Anvil
V-Shaped
Thimble
Ratchet
Lock Nut Type
Lever
Rotating Spindle (Yes/No)
Yes
Anvil Material
Steel
Standards
ISO ASME B89.1.13, JIS B 7502
Long Form Calibration Certificate
No
SPC Output
Yes
IP Rating
IP65
Spindle Material
Steel
Minimum Measurement - mm
0 mm
Coolant Resistant
Yes
Functions
2 Presets, Counting Value Composition Error, Data Hold, Data Output, Function Lock, Inch/mm Conversion, Zero-Setting
Minimum Measurement - Inch
0 in
Includes Battery
Yes
Case Type
Case
Case Included
Yes
Accuracy
+/-0.0002 in
Data Output Type
Cabled
Anvil Shape
V-Shaped
Operation Type
Digital
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No. 05CZA663
Display Type
LCD
Maximum Measurement - mm
25 mm
Maximum Measurement - Inch
1 in
Thimble Type
Ratchet
Inches Measured - Minimum
0 in
Rotating Spindle
Yes
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
25 mm
Spindle Shape
Conical
Inches Measured - Maximum
1 in

Description

Digital Screw Thread Micrometer, Range 0 in to 1 in, 0 mm to 25 mm, Resolution 0.00005 in, Accuracy +/-0.0002 in, IP Rating IP65, SPC Output Yes, Data Output Type Cabled, Long Form Calibration Certificate No, Anvil Shape V-Shaped, Coolant Resistant Yes, Dimension Type Inch/Metric, Operation Type Digital, Thimble Type Ratchet, Anvil Material Steel, Battery Size SR44, Case Included Yes, Case Type Case, Compatible Data Output Cable Mfr. No. 05CZA662, Mfr. No. 05CZA663, Display Type LCD
