  13. Electronic Indicator, 0-1 In, Flat Back
This item is Discontinued.

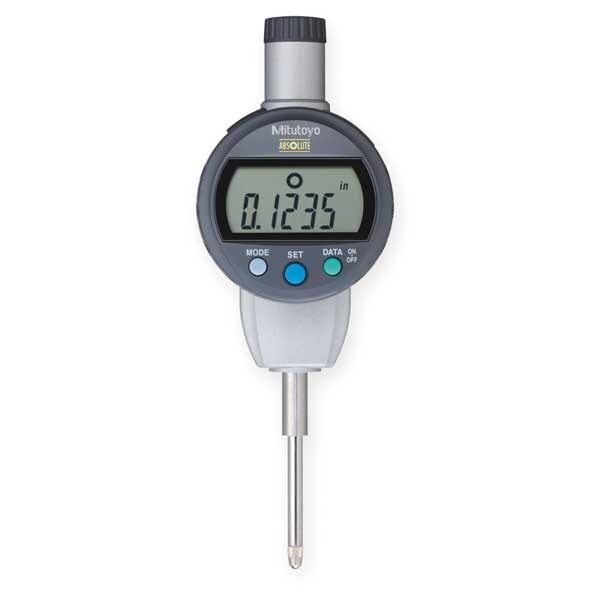

Mitutoyo Electronic Indicator, 0-1 In, Flat Back 543-727B

Electronic Indicator, 0-1 In, Flat Back (Discontinued)

  • Mfr # 543-727B
  • Zoro # G0748063
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
543-727B
Zoro #
G0748063
UPC #
603908512585
Country of Origin
Japan

Dimensions

Dial Size
66 mm W x 83.2 mm H
Stem Dia.
0.375 in
Contact Point Dia.
0.38 in
Stem Thread Size
#4-48 UNF
Dimension Type
Inch/Metric
Battery Size
SR44

Details

Item
Digital Indicator
Series
Series 543
Range
0 in to 1 in
Resolution
0.01 mm, 0.0005 in
Accuracy
+/-0.001 in
Bezel
Rotates 330 Degrees
Long Form Calibration Certificate
No
Features
Absolute Encoder Scale, On/Off, Zero-Set, Preset, Go/No Go, Change Counting Direction, FX=AX Function, Inch/Millimeter Functions and SPC Output Port with Dust Cap, Flat Back
Includes
Battery
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Number of Indicators
1
IP Rating
IP42
Maximum Measurement - mm
25 mm
Max. Measuring Force
1.8 N
Minimum Measurement - mm
0 mm
Maximum Measurement - Inch
1 in
SPC Output
Yes
Display Type
LCD
Contact Point Shape
Radius
Back Type
Removable Flat
Operation Type
Plunger
Non-Magnetic
No
Bezel Type
Yes
Shock Resistant
No
Compatible Data Output Cable
905338
Included Certification
Certificate of Inspection
Includes Case
Yes
Variable Resolution
No
Case Type
Case
Standards
C0920, DIN40050 Part 1, IEC 60529, JIS D0207
Data Output Type
Cable

Description

The MITUTOYO 543-476B Electronic Indicator is a precise tool that can help you measure dimensions with great accuracy. The flat back ensures the indicator stays in place while you work. With an absolute encoder scale, this digital indicator allows for on/off, zero-set, preset and go/no go functions. The FX=AX function is ideal for use in formulas where F is equal to A times X or X equals F divided by A. You can also change the counting direction with this model of electronic digital indicator. It has an inch/millimeter functions and SPC output port with dust cap as well as a removable flat back. This MITUTOYO Digital Indicator will give you outstanding results time after time.
