Mitutoyo Inside Micrometer, 2 to 12" 141-233 - main

Inside Micrometer, 2 to 12"

  • Mfr # 141-233

  • Zoro # G2734715

product price: $309.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.001"/0.01mm
Features

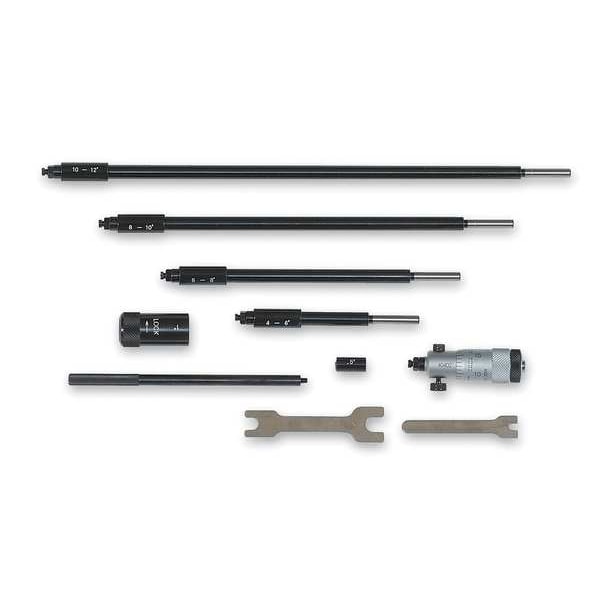

Wide Range of ID Measurements with Interchangeable Rods, Each Interchangeable Rod is Marked with Its Measuring Range, The Sizes of Interchangeable Rods Can be Adjusted with Spacing Collars, Both Micrometer Head and Furnished Rods are Satin-Chrome Finished Throughout
Includes
(1) Fitted Plastic Case, (5) Rods
Anvil
Flat
Thimble
Plain
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
141-233
Zoro #
G2734715
UPC #
603908326519
Country of Origin
Japan

Dimensions

Maximum Measuring Depth
12 in
Rod Diameter
8 mm
Depth Measurement - Maximum
12 in

Details

Item
Inside Micrometer Head
Resolution
0.001"/0.01mm
Range
2 to 12"
Features
Wide Range of ID Measurements with Interchangeable Rods, Each Interchangeable Rod is Marked with Its Measuring Range, The Sizes of Interchangeable Rods Can be Adjusted with Spacing Collars, Both Micrometer Head and Furnished Rods are Satin-Chrome Finished Throughout
Includes
(1) Fitted Plastic Case, (5) Rods
Anvil
Flat
Thimble
Plain
Number of Measuring Rods
5
Anvil Material
Hardened Steel
Number of Gauges
1
Rotating Spindle (Yes/No)
No
SPC Output
No
Rod Type
Solid
Movement of Screw
1/2 in
Contact Point Material
Carbide
Accuracy
+/-0.00048 in
Contact Point Shape
Curved, Flat
Maximum Measurement - Inch
12 in
Minimum Measurement - Inch
2 in
Inside Micrometer Type
Interchangeable-Rod Type
Thimble Type
Plain
Case Included
Yes
Operation Type
Mechanical
Case Type
Plastic Case
Number of Micrometers
1
Inches Measured - Maximum
12 in
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
0 mm
Inches Measured - Minimum
2 in

Description

The Mitutoyo 141-233 Inside Micrometer Head is a tool that allows you to take precise measurements in the smallest of spaces. With a range of 2 to 12", this inside micrometer head has an accuracy of +/-0.00048 in. The thimble has a plain design and is 1/2" wide. This product has a rod type movement, with one half inch available for measuring depth. When it comes to taking accurate measurements, the Mitutoyo 141-233 Inside Micrometer Head is the tool you need on hand.
